Sedan Model

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seat. < Ref. to (SEDAN MODEL) , REMOVAL, Rear Seat. >
Turn over the trim, and remove the quarter trim rear by pressing the claw (A) of the metal clip using a flat screwdriver, etc.

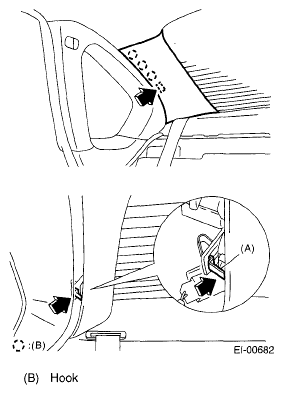

Fig 1: Locating Claw Of Metal Clip

CAUTION: When the metal clip comes off or becomes damaged, replace both trim and metal clips with new parts.
Remove the cap on the upper side of the trim, and remove the bolt inside.

Fig 2: Identifying Trim Bolt
Remove the bolts (A), and remove the quarter trim (front).

Fig 3: Identifying Quarter Trim Bolts (Front)
