Door Trim: Installation

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

NOTE: Be careful not to install the hand grip cover and plate clip of the hand grip in the wrong direction.

Hand grip cover (front and rear door) The side with the protrusion is the upper side.

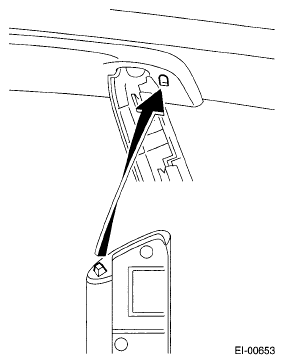

Fig 1: Identifying Plate Clip Of Hand Grip
Bottom clip of the front door faces the opposite direction

Fig 2: Locating Bottom Clip Of Front Door
Lower side of the hand grip cover for the front door has a claw.
The bottom clip of the rear door faces the opposite direction

Fig 3: Locating Bottom Clip Of Rear Door
