Sedan Model
WARNING: This page is about a different car, the 2007 Subaru Outback and 2007 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

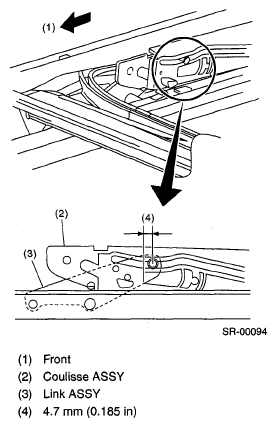

- Align the coulisse assembly and link assembly in the same position.
- Install the motor assembly.
- Connect the harness connector of motor assembly, and then connect the battery ground cable to battery.
- Perform the initialize operation of motor.
- Tilt up the glass lid.
- Release the switch once, and press the tilt up switch again for 15 seconds.
- When the glass lid is raised a little and on tilt up position, release the switch for the moment.
- Keep pressing the tilt up switch within 5 seconds from releasing the switch, glass lid automatically performs the tilts down → slides open → slides close operation, then the initialize operation is completed.
- Check the operation of sunroof with following table.SUNROOF OPERATION CHECKING CONDITION
Operation Switch position (1) Glass lid closes completely. Close (2) Glass lid tilt up to the top position. Tilt up (3) Glass lid closes completely. Tilt down (4) Glass lid opens completely. Open (5) Glass lid closes 150 mm (5.91 in) away from the completely closed position. Close (6) Glass lid closes completely. Close - Install the trim in the reverse order of removal.
