Rear Disc Rotor: Removal

WARNING: This page is about a different car, the 2007 Subaru Outback and 2007 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Lift-up the vehicle, and then remove the rear wheels.
Release the parking brake.
Remove the two mounting bolts, and remove the disc brake assembly.

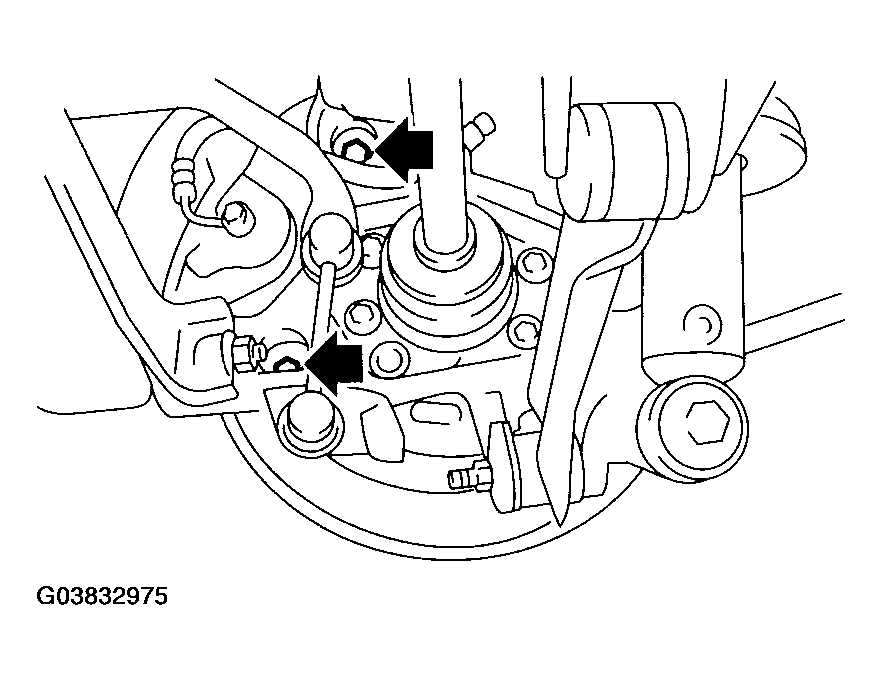

Fig 1: Removing Disc Brake Assembly
Courtesy of SUBARU OF AMERICA, INC.
Suspend the disc brake assembly so that the hose is not stretched.
Remove the disc rotor.
NOTE: If the disc rotor is difficult to remove, try following two methods in order.
1. Turn the adjusting screw using a flat tip screwdriver until the brake shoe gets away enough from the disc rotor.

  Fig 2: Turning Adjusting Screw Using Flat Tip Screwdriver
  Courtesy of SUBARU OF AMERICA, INC.
2. If the disc rotor seizes up within hub, drive the disc rotor out by pushing with an 8 mm bolt in holes B on the rotor.
Fig 3: View Of Disc Rotor
Courtesy of SUBARU OF AMERICA, INC.
