Rear Brake Pad: Removal

WARNING: This page is about a different car, the 2007 Subaru Outback and 2007 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Lift-up the vehicle, and then remove the rear wheels.
Remove the caliper bolt.

Fig 1: Removing Caliper Bolt
Courtesy of SUBARU OF AMERICA, INC.
Raise the caliper body and support it.
NOTE: Do not disconnect the brake hose from caliper body.
Remove the pad.

NOTE: If the brake pad is difficult to remove, use the same procedure as for front disc brake pad.

< Ref. to , REMOVAL , Front Brake Pad. >

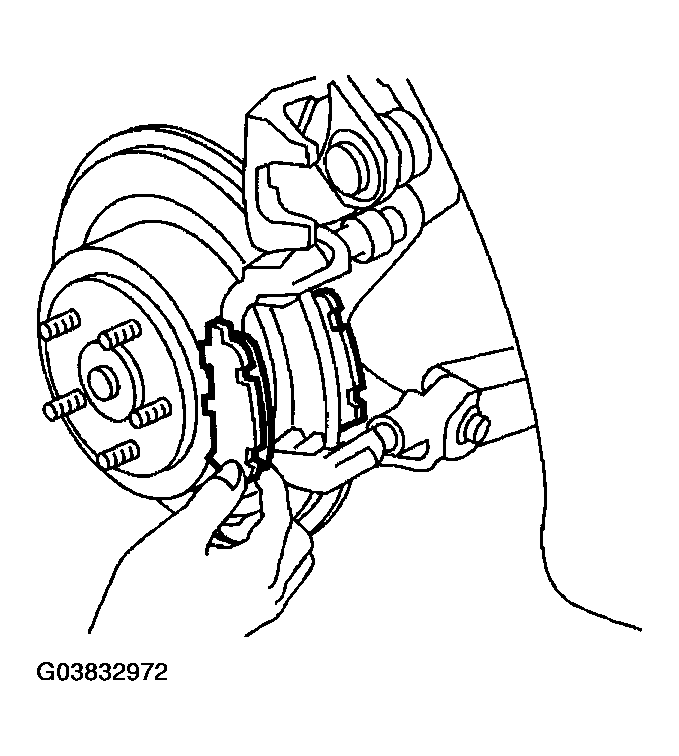

Fig 2: Removing Brake Pad

Courtesy of SUBARU OF AMERICA, INC.
