With 17" Wheel

1. Apply a thin coat of Molykote M7439 to pad clip.
   Fig 1: Locating Molykote M7439 Applying Point

   Courtesy of SUBARU OF AMERICA, INC.
2. Apply a thin coat of Molykote AS880N (Part No. K0779YA010) to the frictional portion between pad and pad inner shim.

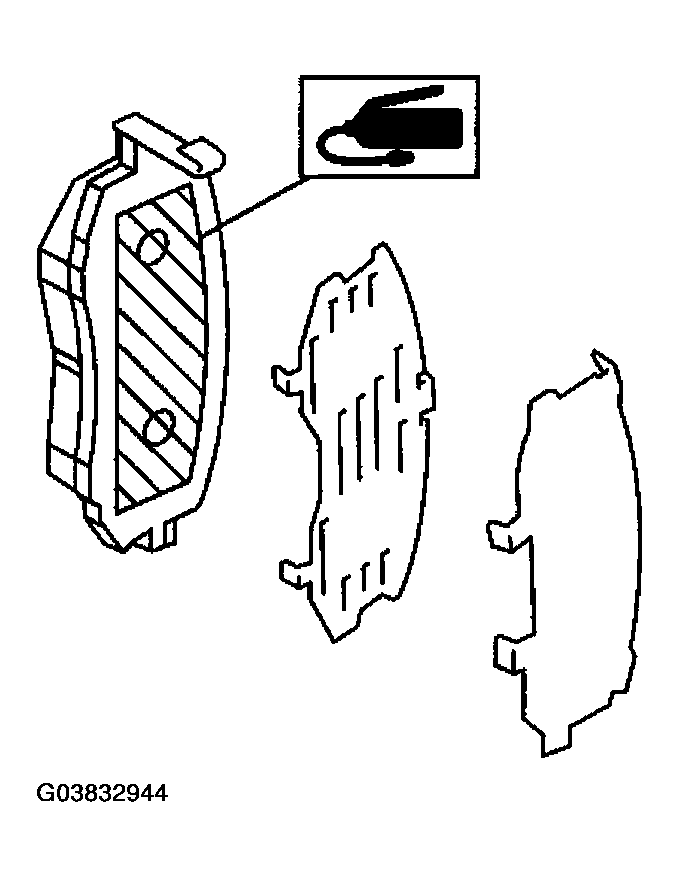

   Fig 2: Locating Molykote AS880N Applying Point (1 Of 2)

   Courtesy of SUBARU OF AMERICA, INC.
3. Apply a thin coat of Molykote AS880N (Part No. K0779YA010) to the three frictional portions between inner shim and outer shim of outer pads.
   Fig 3: Locating Molykote AS880N Applying Point (2 Of 2)

   Courtesy of SUBARU OF AMERICA, INC.
4. Install the pad on support.
   NOTE: Install the pad indicator in proper direction.

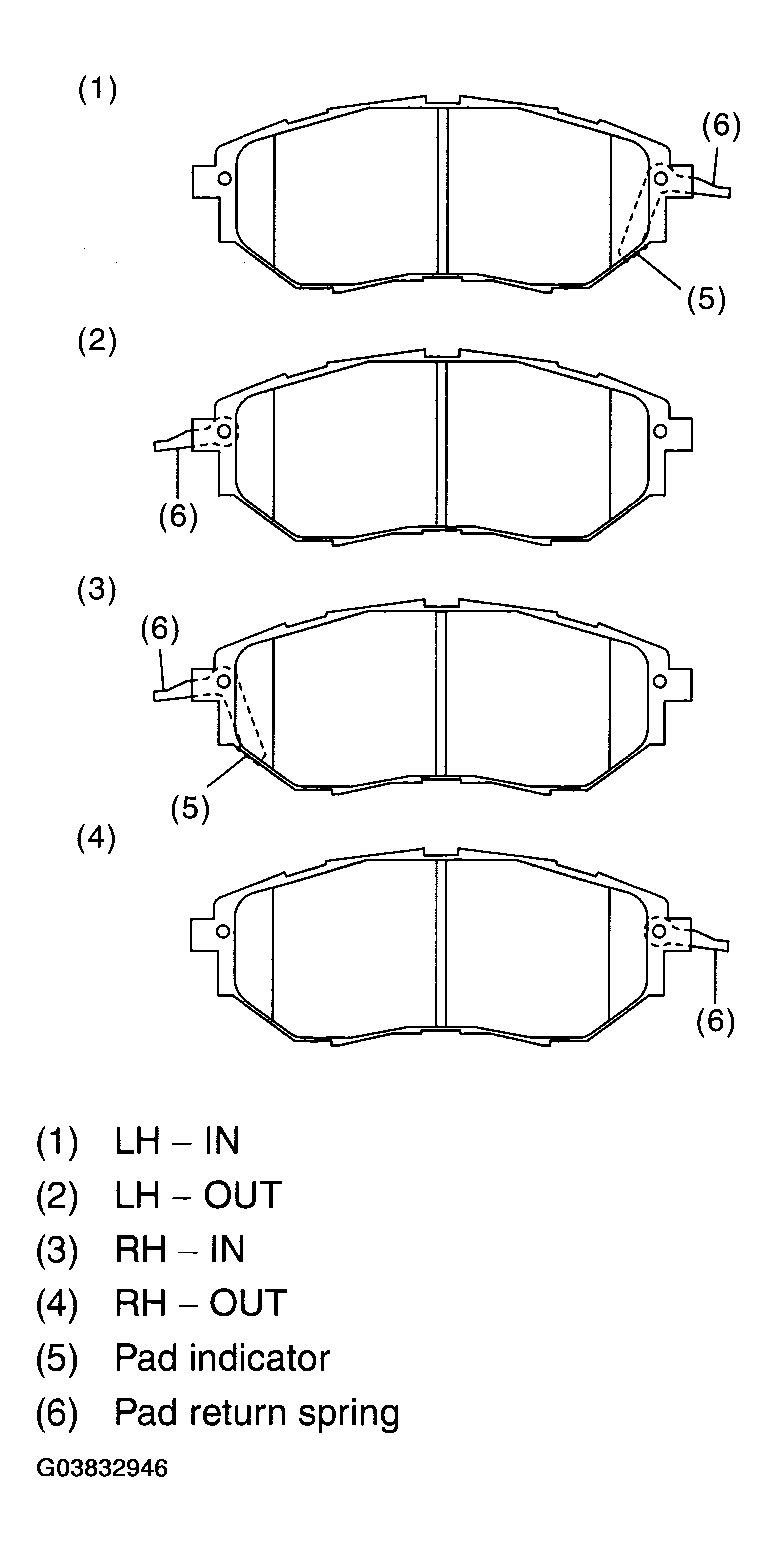

   Fig 4: Identifying Pad Indicator Proper Installation Direction

   Courtesy of SUBARU OF AMERICA, INC.
   CAUTION:

   • Correctly install the pad return spring to supporting surface of pad clip as shown in Fig 5 .
   • When the pad return spring is deformed or damaged, replace the brake pad with new one.

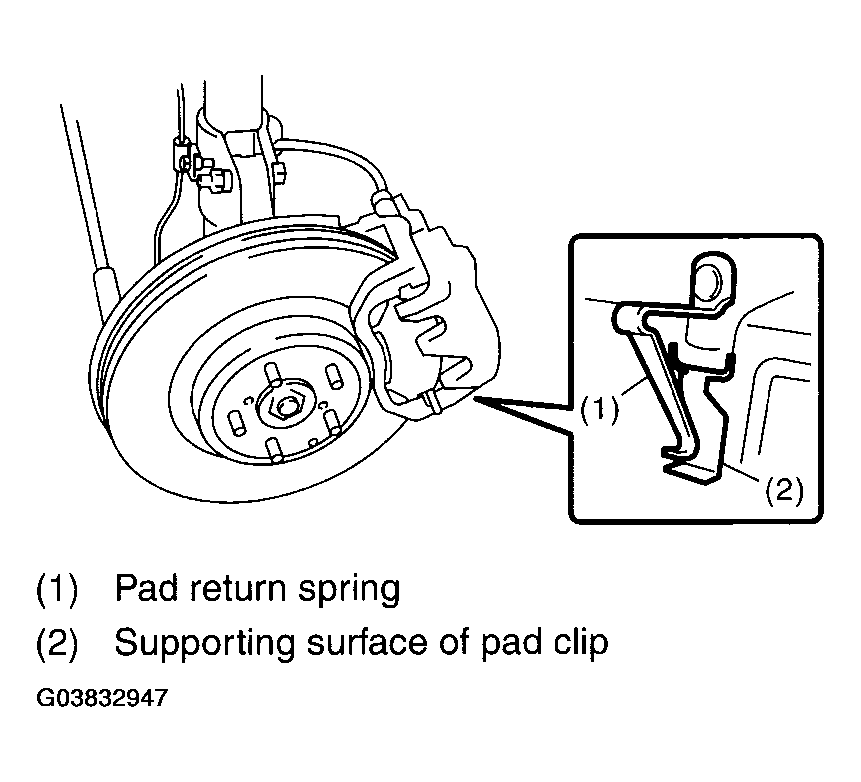

   Fig 5: Replacing Pad Return Spring

   Courtesy of SUBARU OF AMERICA, INC.
5. Install the caliper body on support.

Tightening torque:

27 N.m (2.8 kgf-m, 19.9 ft-lb)
