Cruise Control: Schematic

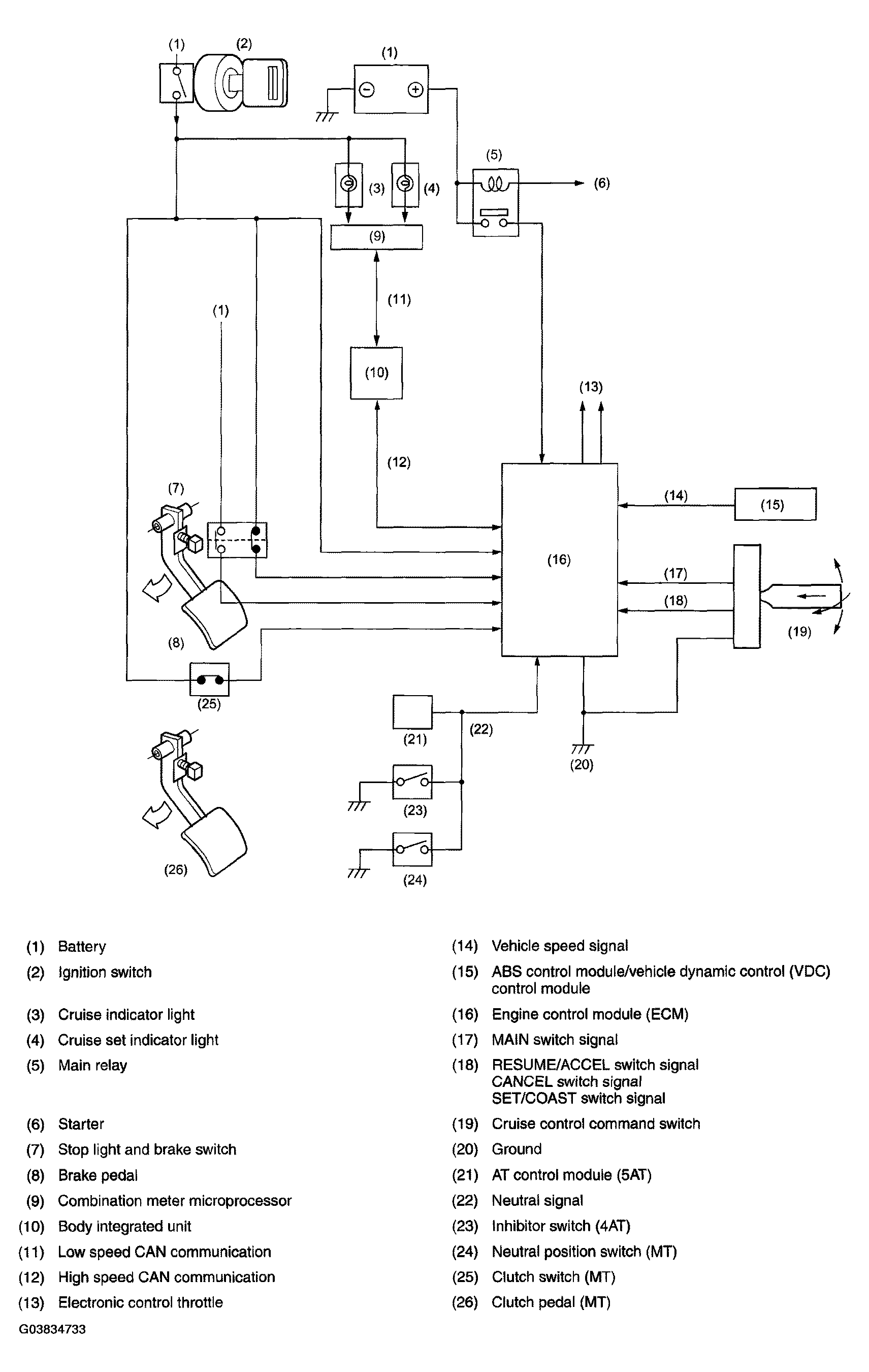

Fig 1: Schematic Diagram - Cruise Control System

G03834733

Courtesy of SUBARU OF AMERICA, INC.
