Component Description

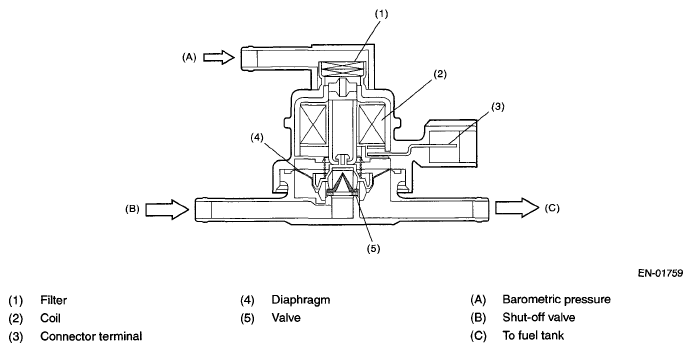

Fig 1: Identifying Fuel Tank Pressure Control Solenoid Valve Components
G05340035Courtesy of SUBARU OF AMERICA, INC.
