Details of Judgment Value

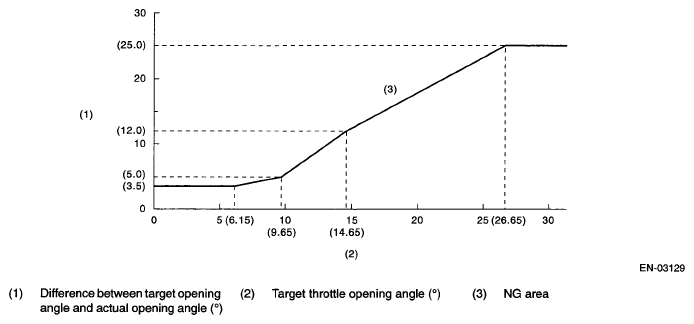

Fig 1: Target Opening Angle And Actual Opening Angle Graph

Courtesy of SUBARU OF AMERICA, INC.

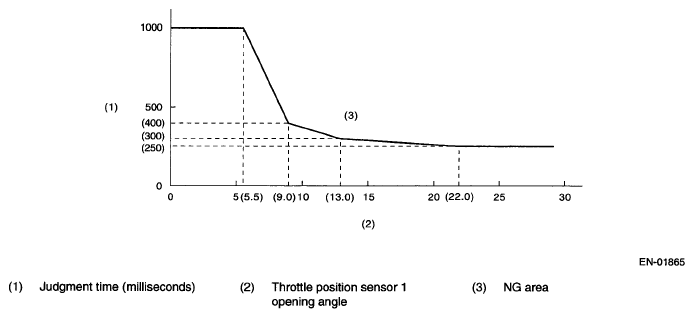

Details of Judgment time  (The actual opening angle ≤ target opening angle is always 1000 milliseconds)

Fig 2: Target Opening Angle And Actual Opening Angle Graph

Courtesy of SUBARU OF AMERICA, INC.

Malfunction Indicator Light Illumination:  Illuminates as soon as a malfunction occurs.
