Diagnostic Method: Normal

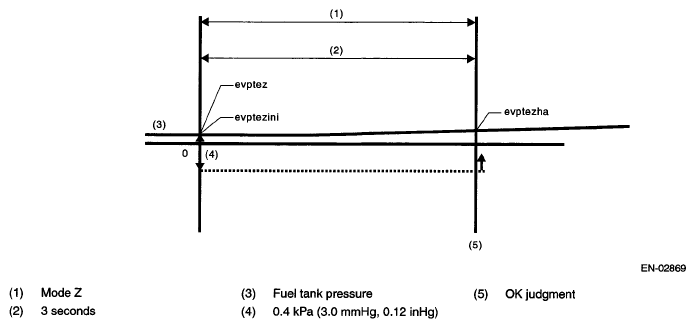

Fig 1: Identifying Fuel Tank Pressure In Mode Z

G05340014

Courtesy of SUBARU OF AMERICA, INC.

evptez - evptezha ≤ 0.4 kPa (3.0 mmHg, 0.12 inHg)

Normal when above is established
