Components With Torque Specifications: Generator

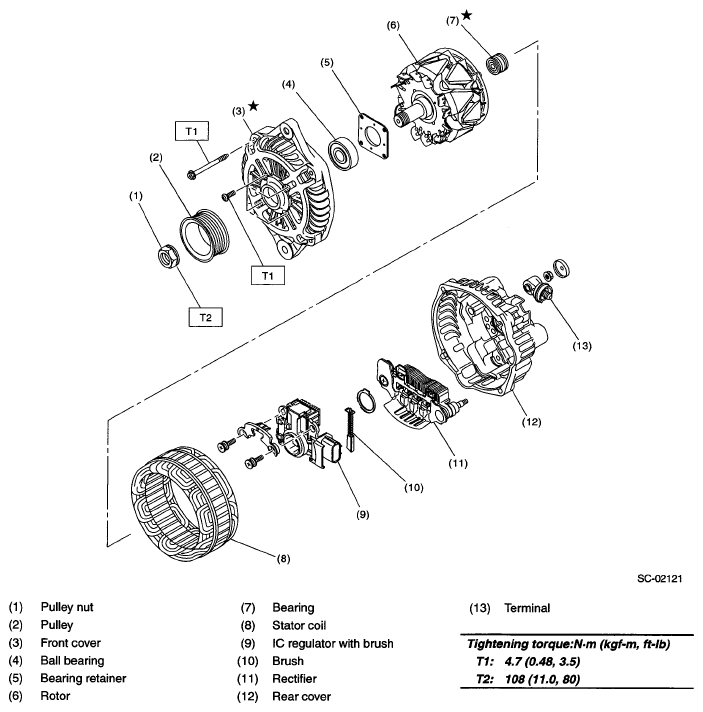

Fig 1: Generator Replacement Components With Torque Specifications

G05339701

Courtesy of SUBARU OF AMERICA, INC.
