Control Module I/O Signal: Wiring Diagram

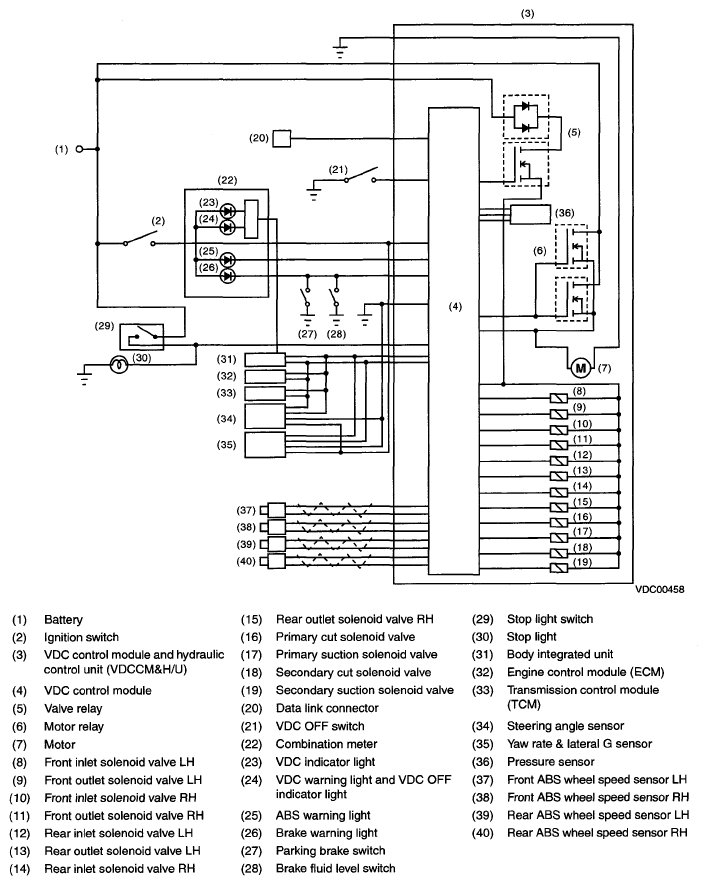

Fig 1: Control Module I/O Signal - Wiring Diagram

G05343447

Courtesy of SUBARU OF AMERICA, INC.
