Planetary Gear And 2-4 Brake

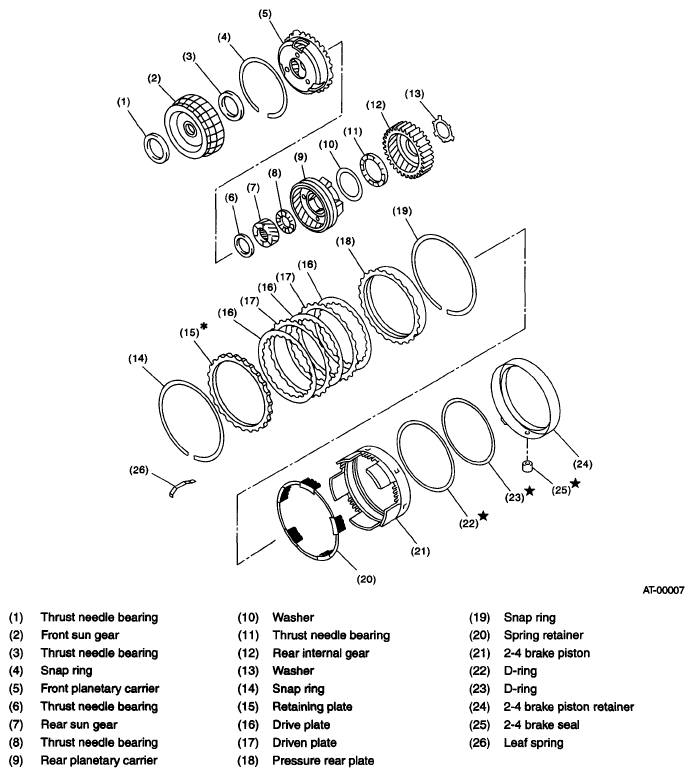

Fig 1: Identifying Planetary Gear And 2-4 Brake Components
G05668192Courtesy of SUBARU OF AMERICA, INC.
