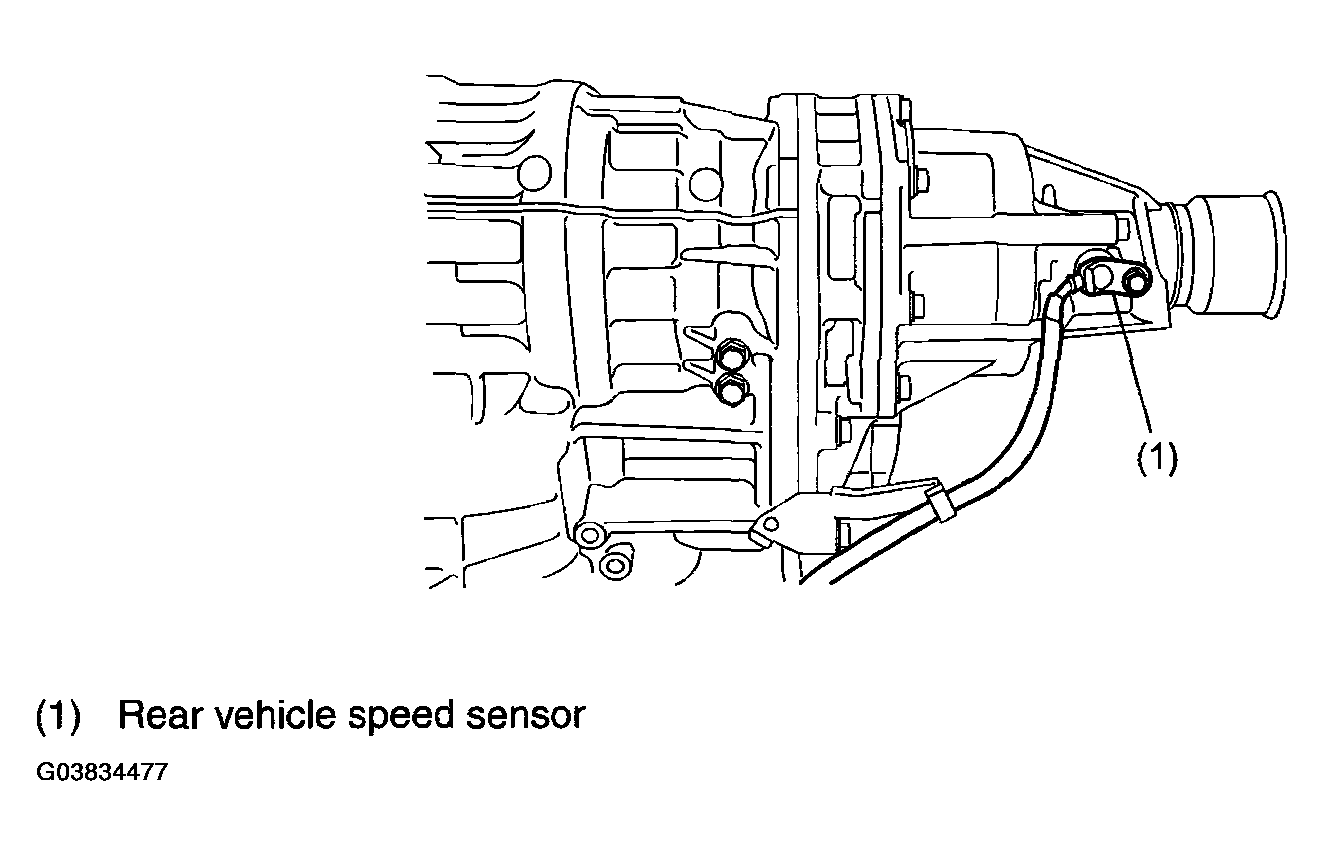

Rear Vehicle Speed Sensor
WARNING: This page is about a different variant/trim than selected.
This vehicle speed sensor is a Hall element type sensor and is externally mounted on the extension case. It detects the rear wheel speed in terms of the peripheral speed of the rear drive shaft and sends pulse signals (22 pulses per rotation) to the TCM.
