Section 14 (Clutch System)
>>
General Description
>>
Components With Torque Specifications
>>
Master Cylinder
Master Cylinder
WARNING:
This page is about a different variant/trim than selected.

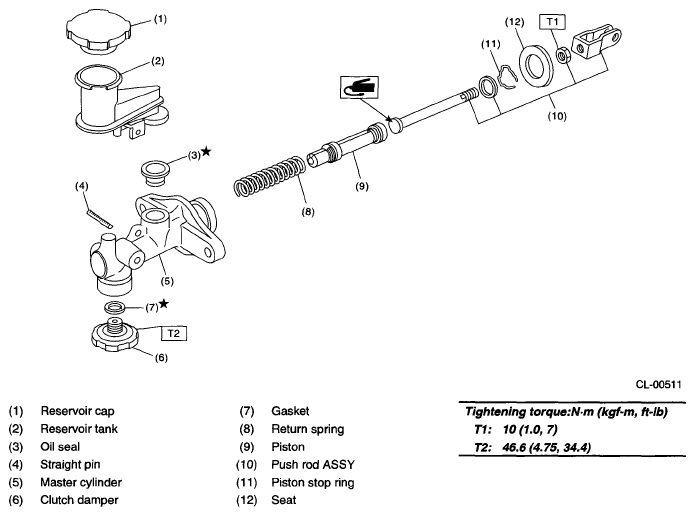

Fig 1: Master Cylinder Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
