Fuel Injector

WARNING: This page is about a different car, the 2007 Subaru Outback. However, it is still accessible from the selected car via links, so may be relevant.

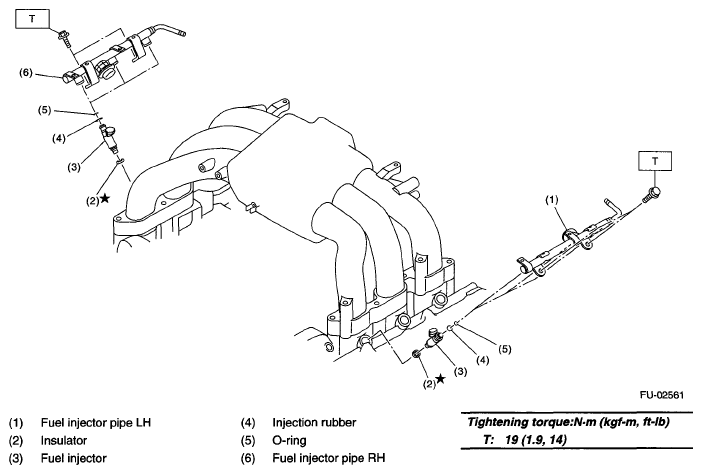

Fig 1: Fuel Injector Replacement Components With Torque Specifications
G05341027Courtesy of SUBARU OF AMERICA, INC.
