Wheel Arch Height
WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
- Park the vehicle on a level surface.
- Set the vehicle under "curb weight" condition. (Make the luggage compartment empty, install the spare tire, jack and service tools, and top up the fuel tank.)
- Set the steering wheel in a straight-ahead position, and stabilize the suspensions by moving the vehicle straight more than 5 m (16 ft).

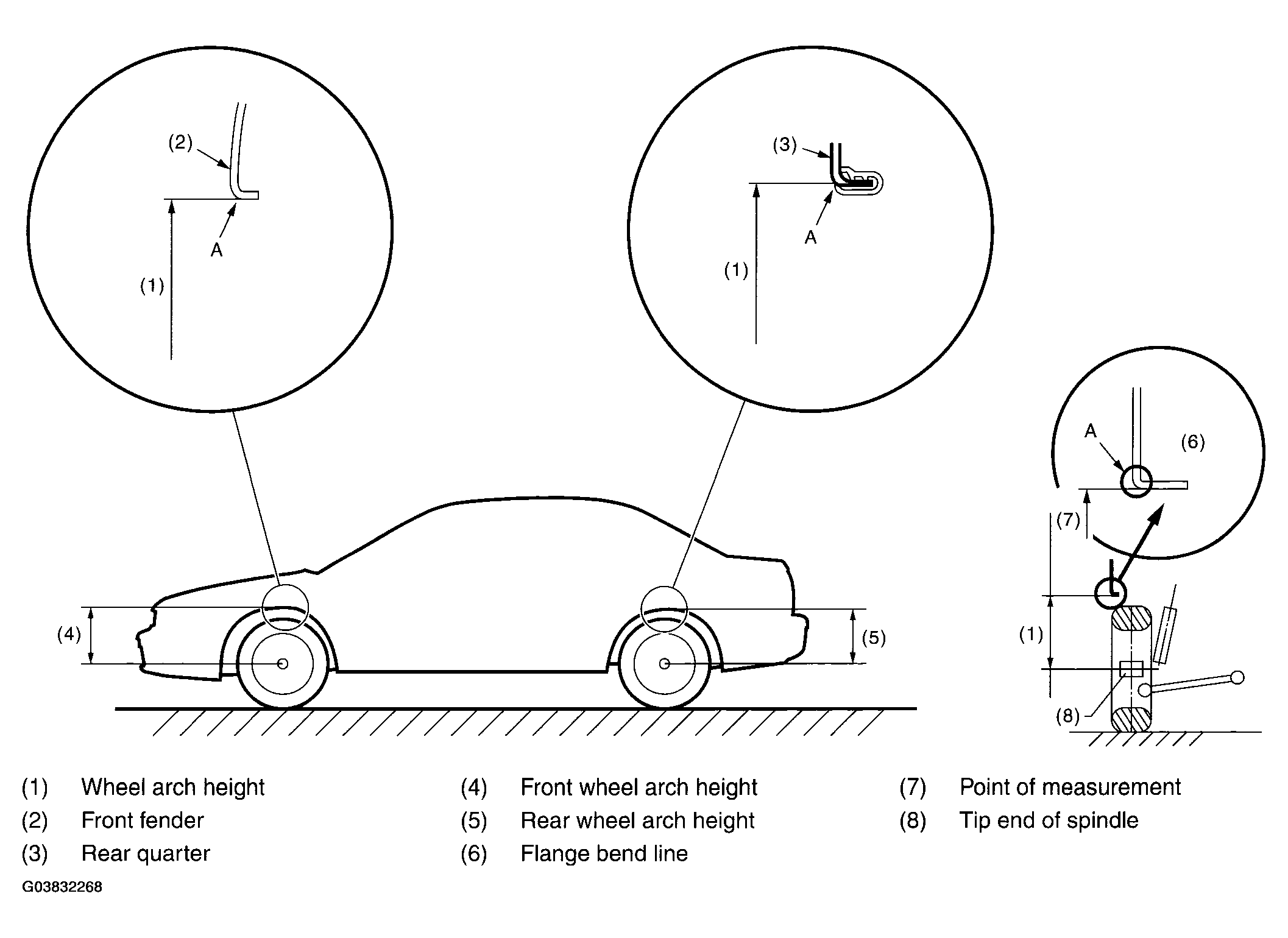

- Suspend a thread from wheel arch (point "A" shown in Fig 1 ) to determine the point directly above the center of wheel.
- Measure the distance between the point "A" and the center of wheel.
WHEEL ARCH HEIGHT
| Wheel arch height standard value mm (in) (Tolerance: (+12 mm 24 mm (+0.47 in 0 94 in)) | ||||||
|---|---|---|---|---|---|---|
| Model | Sedan | Wagon | ||||
| 2.5 i | 2.5 GT | OUTBACK | 2.5 | 2.0 GT | OUTBACK | |
| Front | 381 (15.0) | 439 (17.3) | 381 (15.0) | 439 (17.3) | ||
| Rear | 365 (14.4) | 438 (17.2) | 375 (14.8) | 438 (17.2) | ||
