Sedan Model

WARNING: This page is about a different car, the 2008 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Mount the fastener on the body.
Apply the primer to the glass and body sides in the same procedure as for windshield glass. <Ref. to INSTALLATION , Windshield Glass. >
Process the cartridge nozzle tip as shown in the figure, and set the adhesive in sealant gun.

Fig 1: Identifying Cartridge Nozzle Tip Dimension
Courtesy of SUBARU OF AMERICA, INC.
Install the dam rubber in the position 8 mm from the molding edge.
Apply adhesive in the same procedure as for windshield glass. <Ref. to INSTALLATION , Windshield Glass. >

Fig 2: Applying Adhesive In Windshield Glass
Courtesy of SUBARU OF AMERICA, INC.

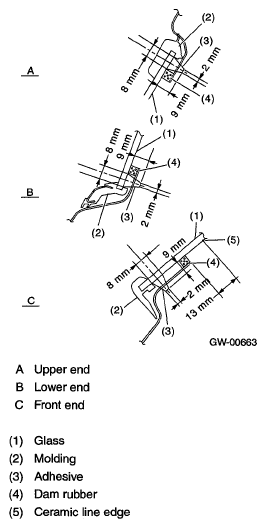

Fig 3: Adhesive Application Dimensions For Windshield Glass
Courtesy of SUBARU OF AMERICA, INC.
Insert the glass locating pin into the hole on side panel and push on the area around the locating pin to secure it.
Then, push lightly all around the area to seal it.
After completion of all work, allow the vehicle to stand for about 24 hours.
NOTE:
- When door is opened/closed after glass is bonded, always lower the door glass first, and then open/close it carefully.
- Move the vehicle slowly.
- For minimum drying time and vehicle standing time before driving after bonding, follow instructions or instruction manual from the adhesive manufacturer.
After curing of adhesive, pour the water on external surface of vehicle to check that there are no water leaks.

NOTE: When a vehicle is returned to the user, tell him or her that the vehicle should not be subjected to heavy impact for at least three days.
