Section 161 (Parking Brake System)
>>
General Description
>>
Components With Torque Specifications
>>
Parking Brake Cable
Parking Brake Cable
WARNING:
This page is about a different car, the 2008 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

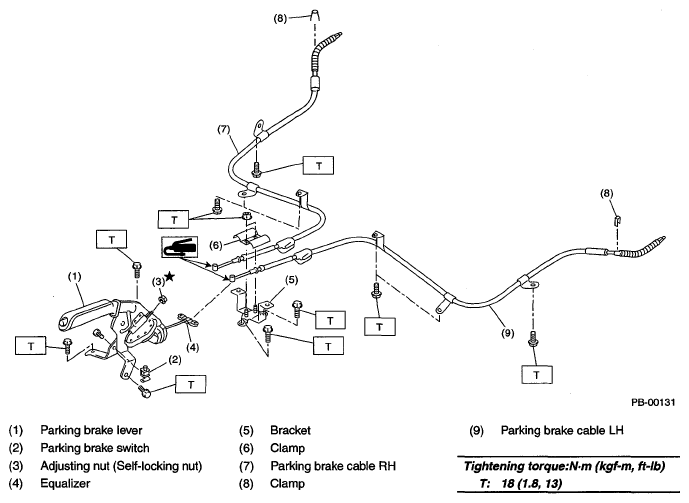

Fig 1: Parking Brake Cable Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
