Section 150 (Engine Intake System - Intake (Induction) (H4SO))
>>
General Description
>>
Components With Torque Specifications
Components With Torque Specifications
WARNING:
This page is about a different car, the 2008 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

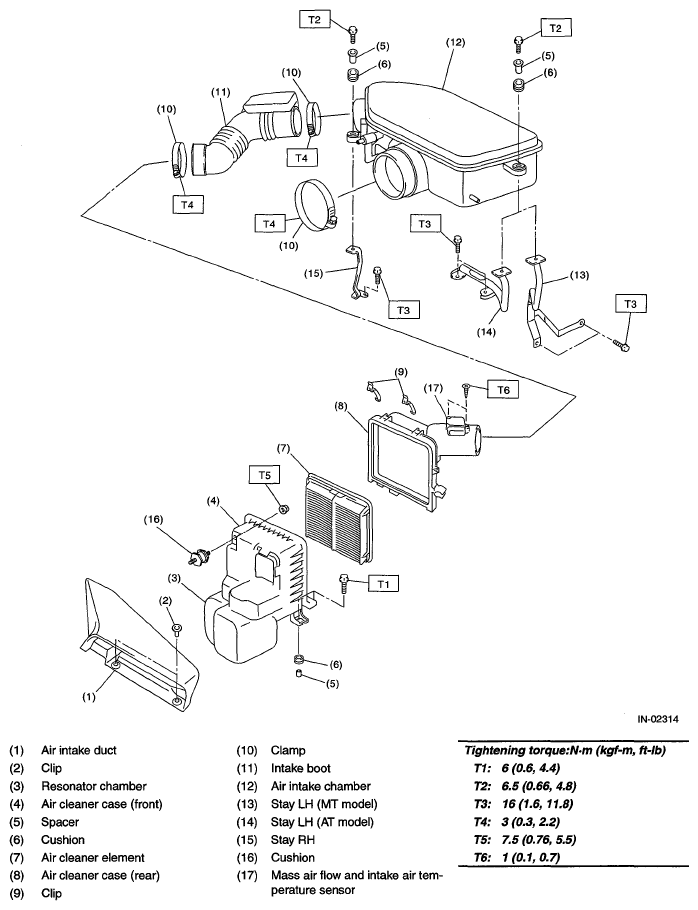

Fig 1: Identifying Intake Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
