General Description
>>
Components With Torque Specifications
>>
Sedan Model
Sedan Model

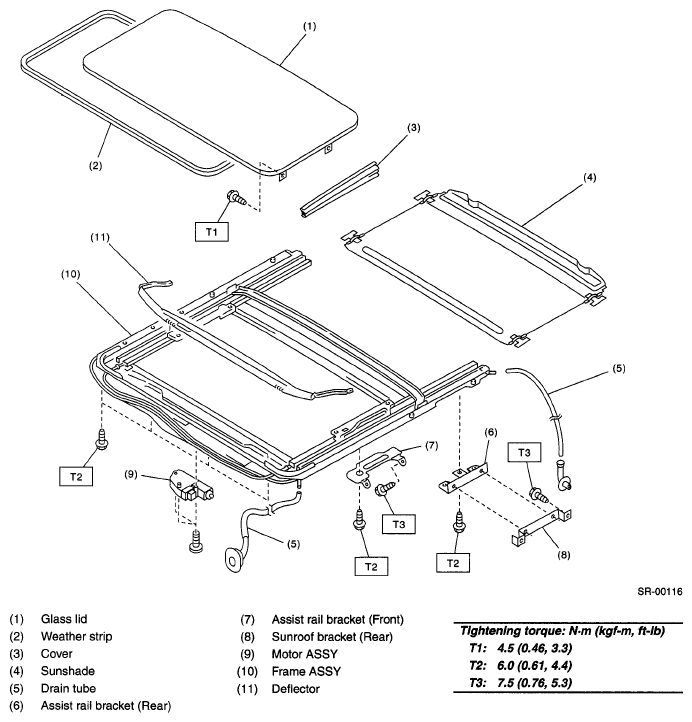

Fig 1: Sunroof Replacement Components With Torque Specifications (Sedan Model)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
