Datum Dimensions: Measurement: Rear

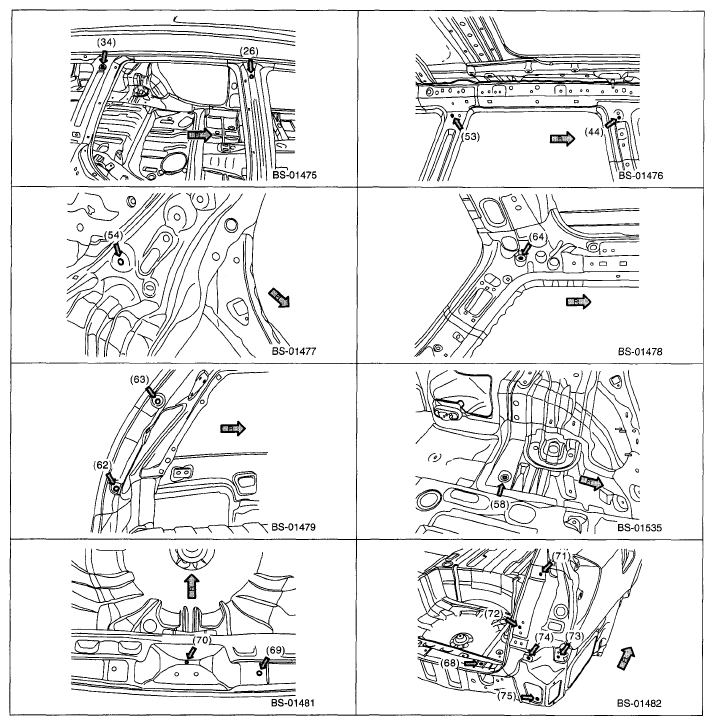

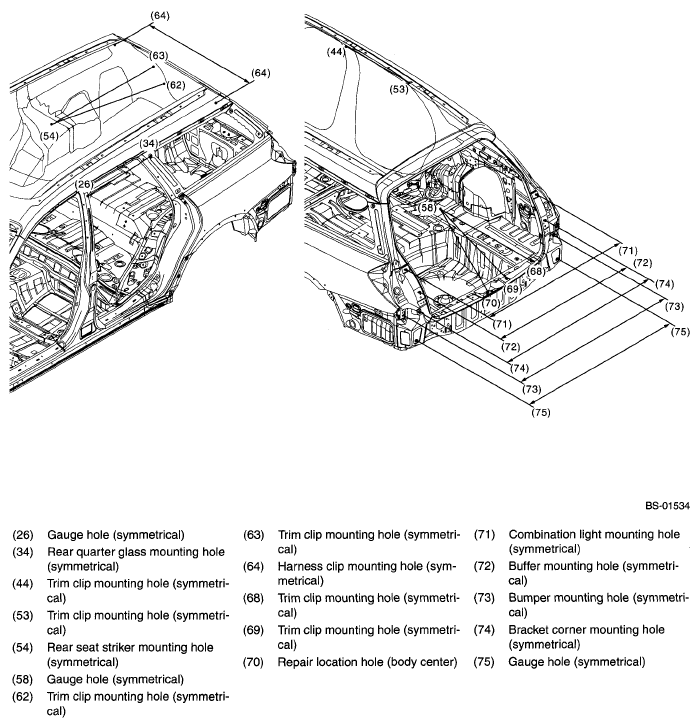

- Wagon model
REAR STRUCTURE DIMENSION SPECIFICATIONS
| Point of measurement | Datum Dimension mm (in) |
|---|---|
| (26) - (34) | 613(24.13) |
| (44) - (53) | 591 (23.27) |
| (54) - (62) | 969(38.15) |
| (54) - (63) | 884 (34.80) |
| (58) - (68) | 900 (35.43) |
| (58) - (69) | 958 (37.72) |
| (58) - (70) | 990 (38.98) |
| (64) - (64) | 944(37.17) |
| (71) - (71) | 1,224(48.19) |
| (72) - (72) | 1,173(46.18) |
| (73) - (73) | 1,438(56.61) |
| (74) - (74) | 1,250(49.21) |
| (75) - (75) | 1,320(59.97) |
NOTE:
- The reference point (70) is at the body center, while the other points are left-right symmetrical.
- The dimensions are the actual dimensions between the reference points.

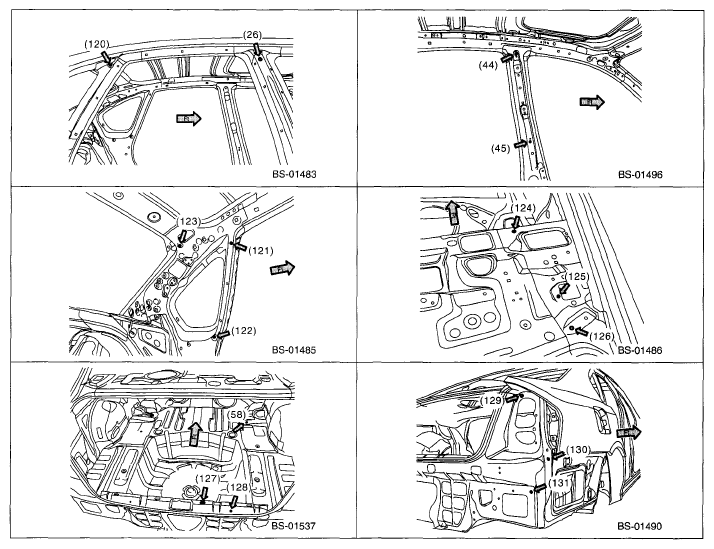

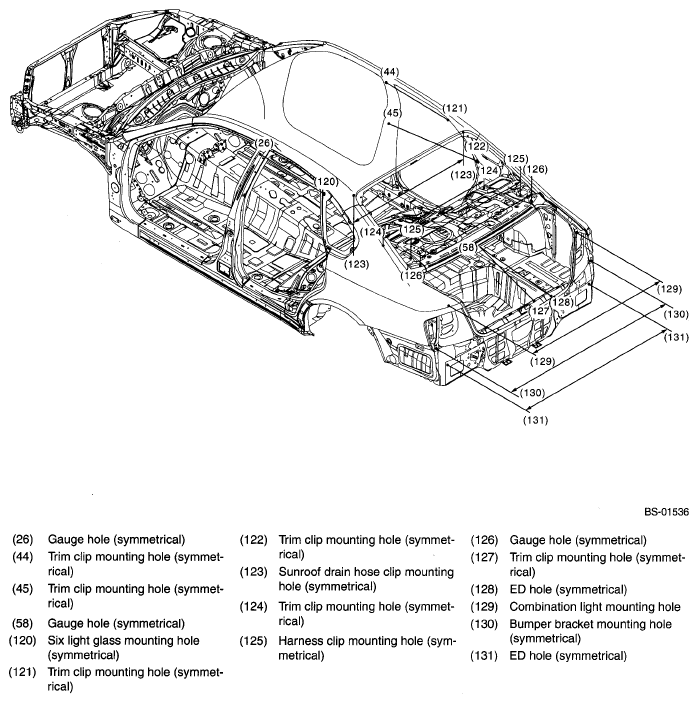

- Sedan model
