Line Pressure Linear Solenoid

This solenoid is mounted on the transmission control valve. This adjusts the line pressure in response to electrical current instructions from the TCM. The line pressure is regulated to an optimum level according to the driving condition.

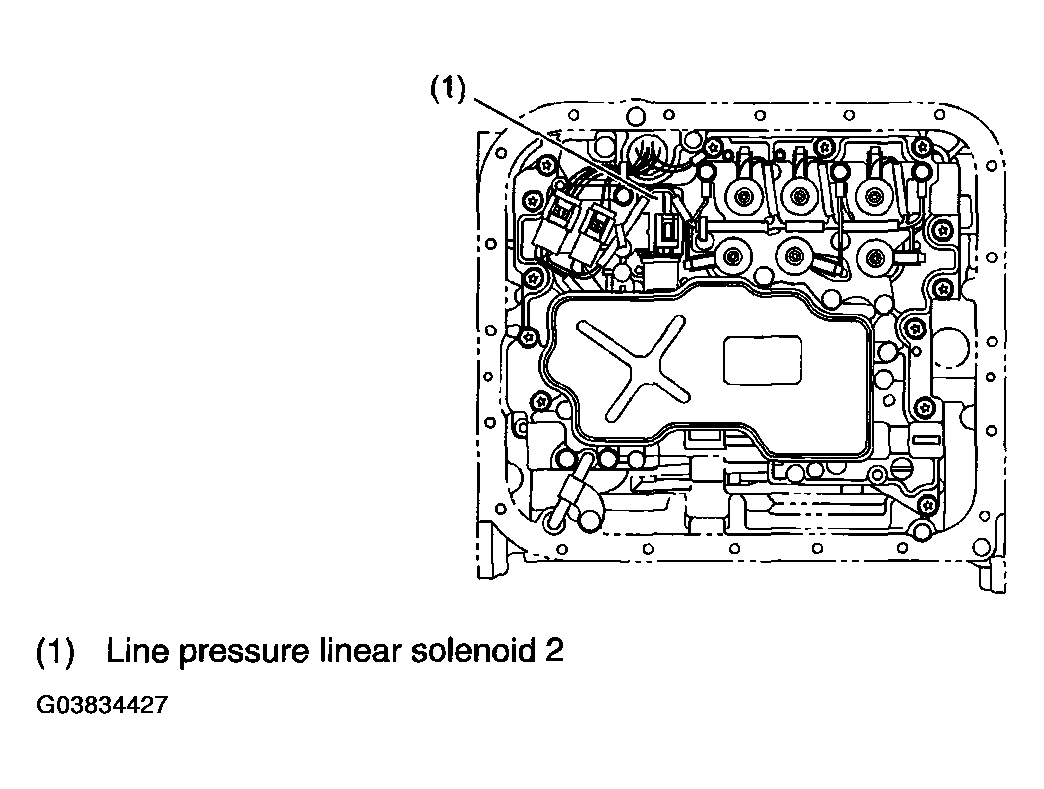

Fig 1: Identifying Line Pressure Linear Solenoid

Courtesy of SUBARU OF AMERICA, INC.
