ATF Temperature Sensor

This sensor is integrated with the transmission harness and is mounted on the transmission control valve body. Its resistance varies in accordance with the ATF temperature. The characteristics of the sensor are as shown below.

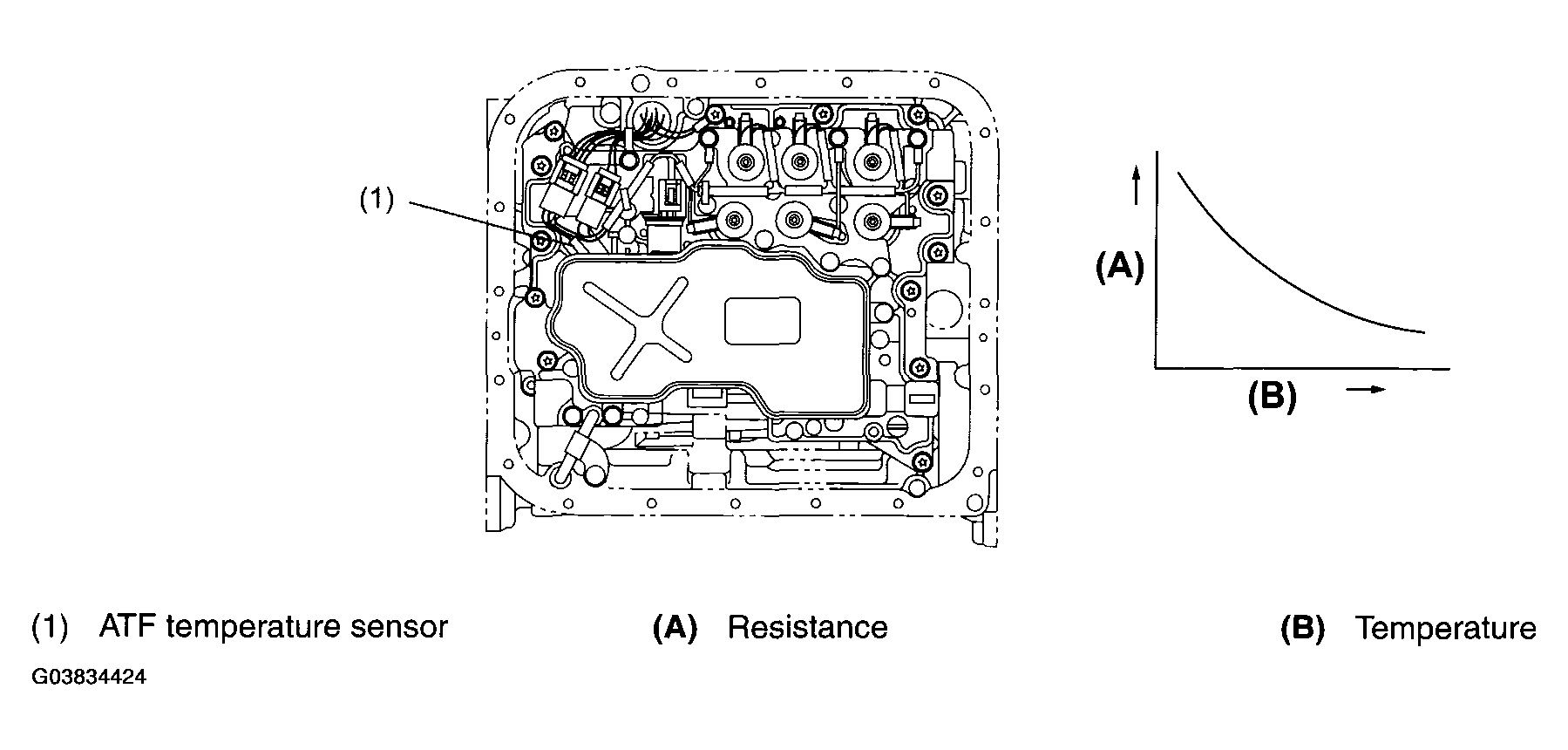

Fig 1: Identifying ATF Temperature Sensor
G03834424Courtesy of SUBARU OF AMERICA, INC.
