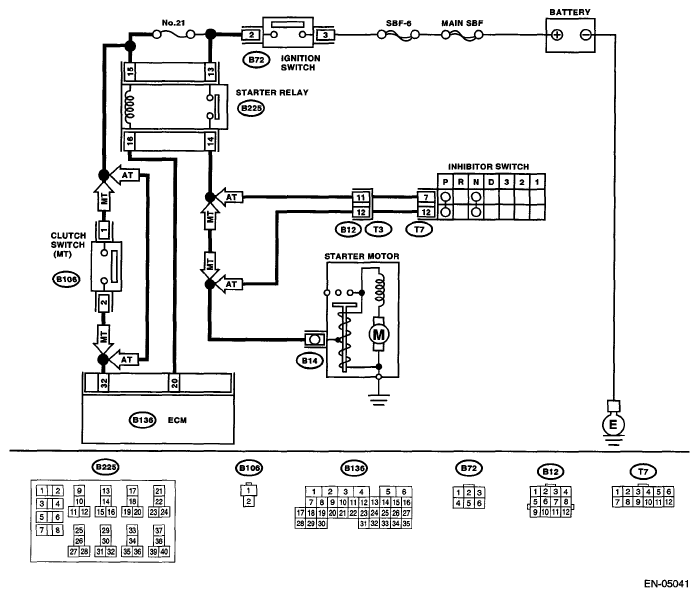

DTC P1518 Starter Switch Circuit Low Input: Wiring Diagram
DIAGNOSTIC PROCEDURE CHART
| Step | Check | Yes | No |
|---|---|---|---|
| 1 CHECK FOR ANY OTHER DTC ON DISPLAY. | Is any other DTC displayed? | Check DTC using "List of Diagnostic Trouble Code (DTC)". <Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > | Go to step 2. |
2 CHECK HARNESS BETWEEN ECM AND IGNITION SWITCH.
NOTE:
For the MT model, measure while stepping on the clutch pedal.
|
Is the resistance less than 1 Ω? | Go to step 3. |
NOTE:
Check the following item and repair or replace if necessary.
|
| 3 CHECK HARNESS BETWEEN ECM AND IGNITION SWITCH. Measure the resistance between ECM and chassis ground. Connector & terminal (B136) No. 32 - Chassis ground:
NOTE:
For the MT model, measure while stepping on the clutch pedal.
|
Is the resistance 1 MΩ or more? | Repair the ground short circuit of harness between the ECM and ignition switch connector. | Contact your SOA service center. |
