Door Lock Assembly

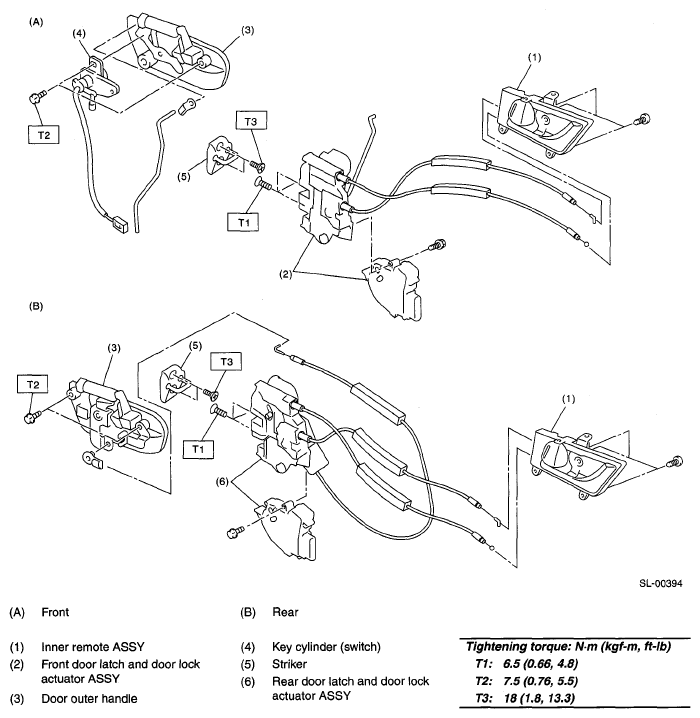

Fig 1: Door Lock Assembly Replacement Components With Torque Specifications
G05022792Courtesy of SUBARU OF AMERICA, INC.
