General Description
>>
Components With Torque Specifications
>>
Power Assisted System
Power Assisted System

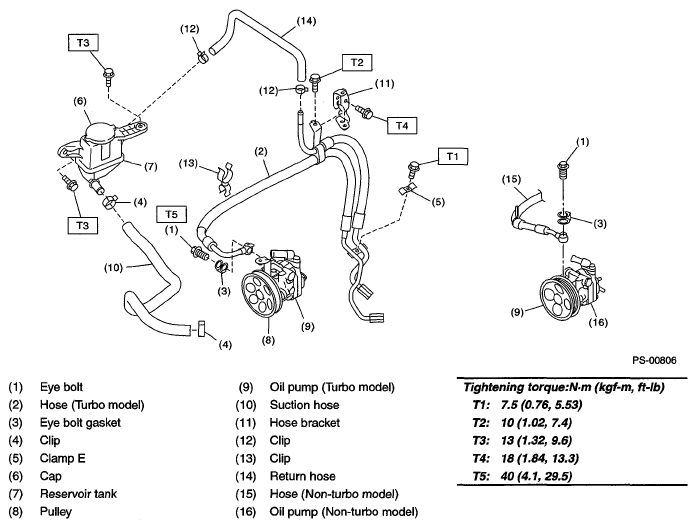

Hose and tank
Fig 1: Exploded View Of Hose And Tank With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.

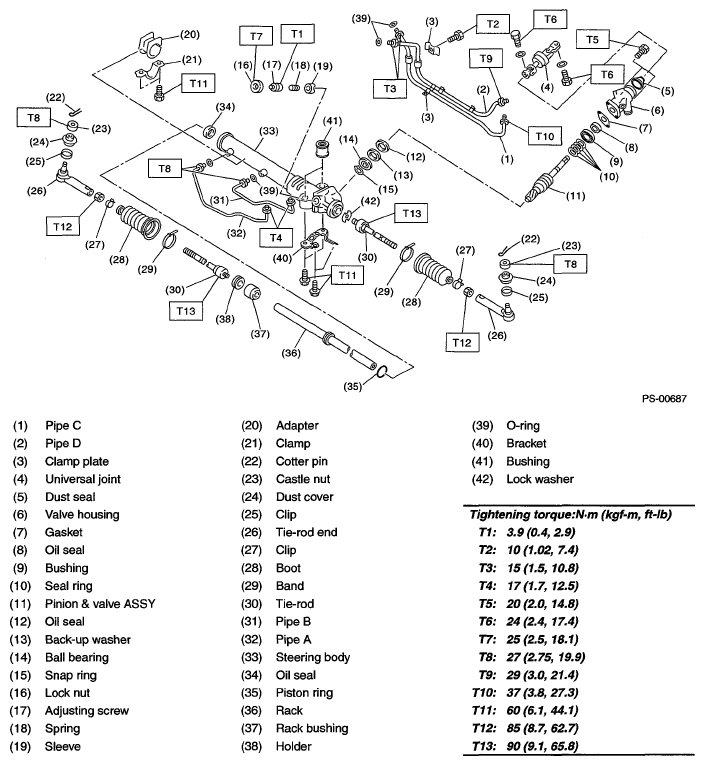

Gearbox
Fig 2: Exploded View Of Gearbox With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
