Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

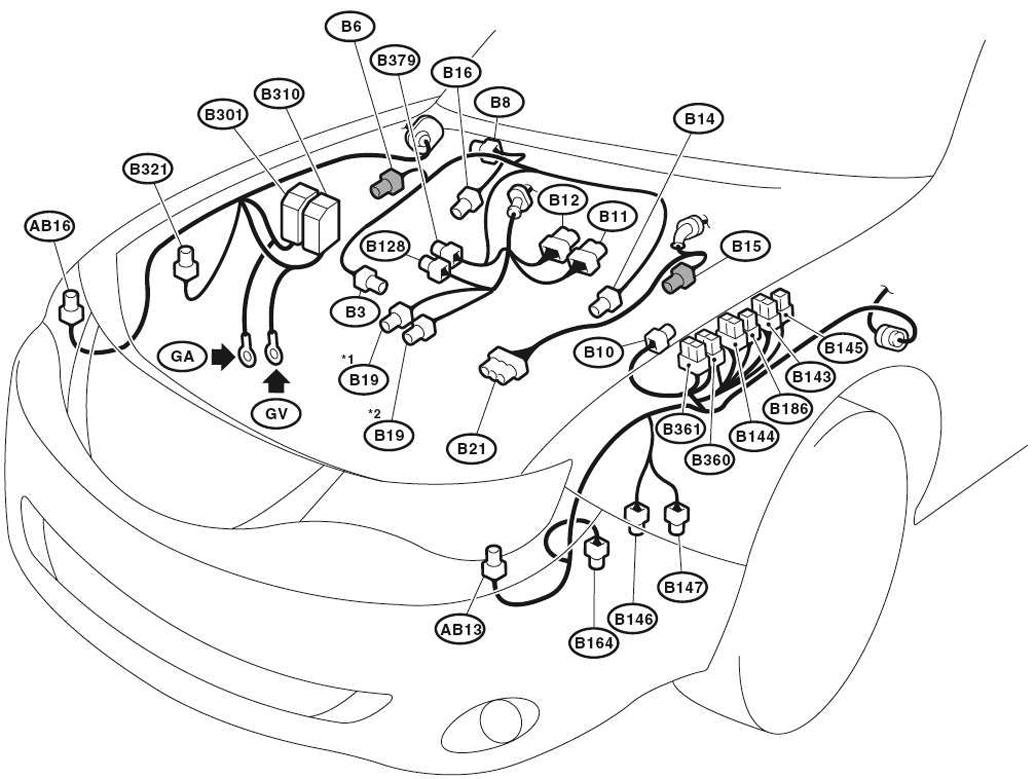

| ABS Control Module (Non-Turbo) (B301) | On right side of engine compartment. See Figure. |

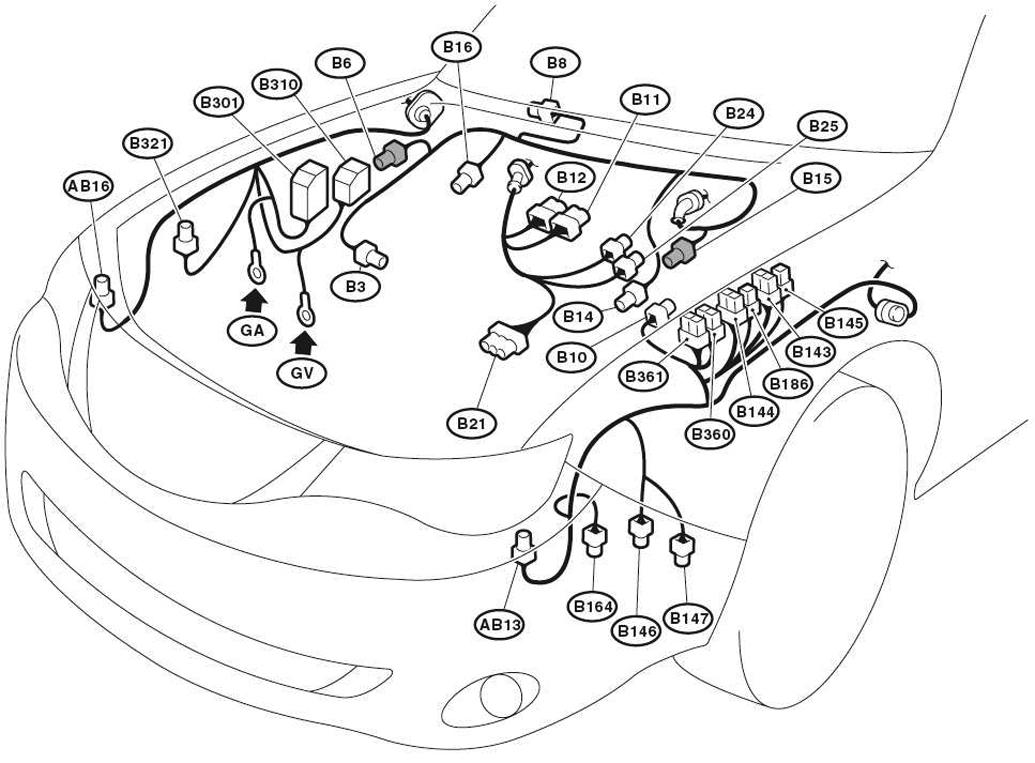

| ABS Control Module (Turbo) (B301) | Right side of engine compartment. See Figure. |
| Air Bag Control Module (AB6) | Under front of center console. See Figure. |

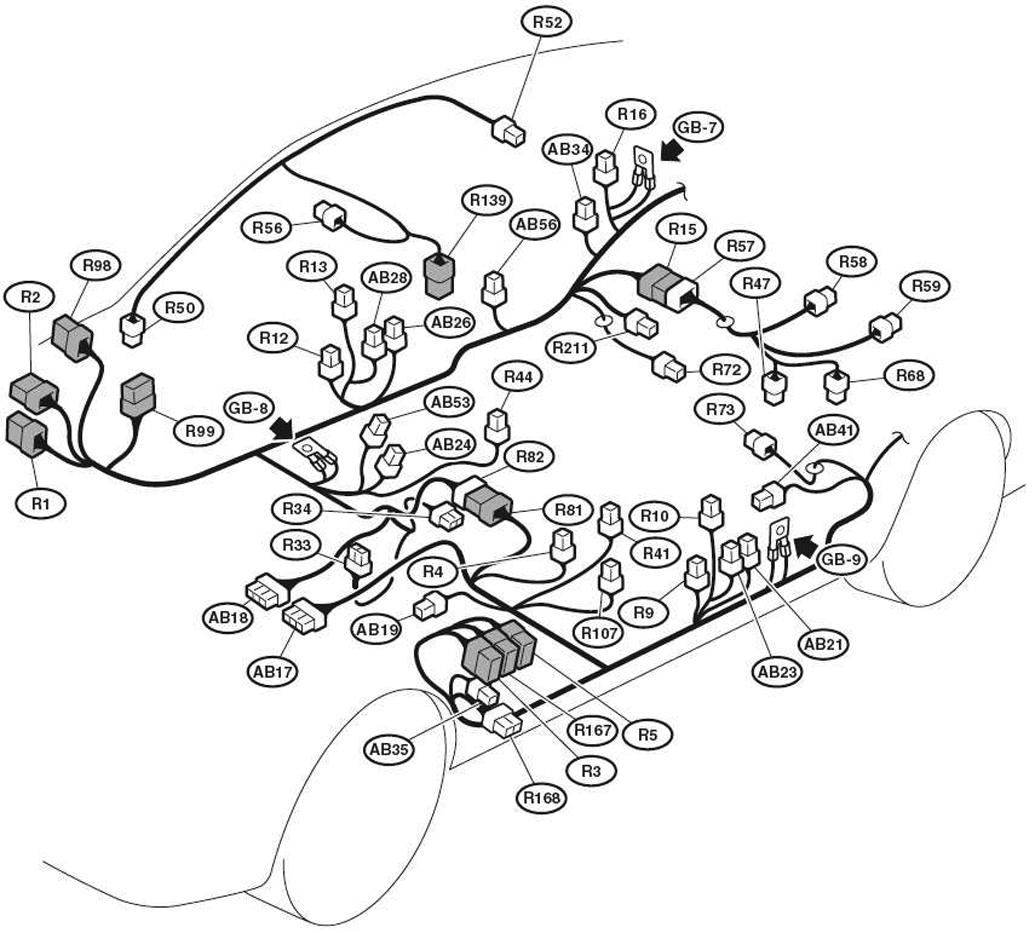

| Belt Tensioner Sensor (AB56) | Under right side of rear seat. See Figure. |

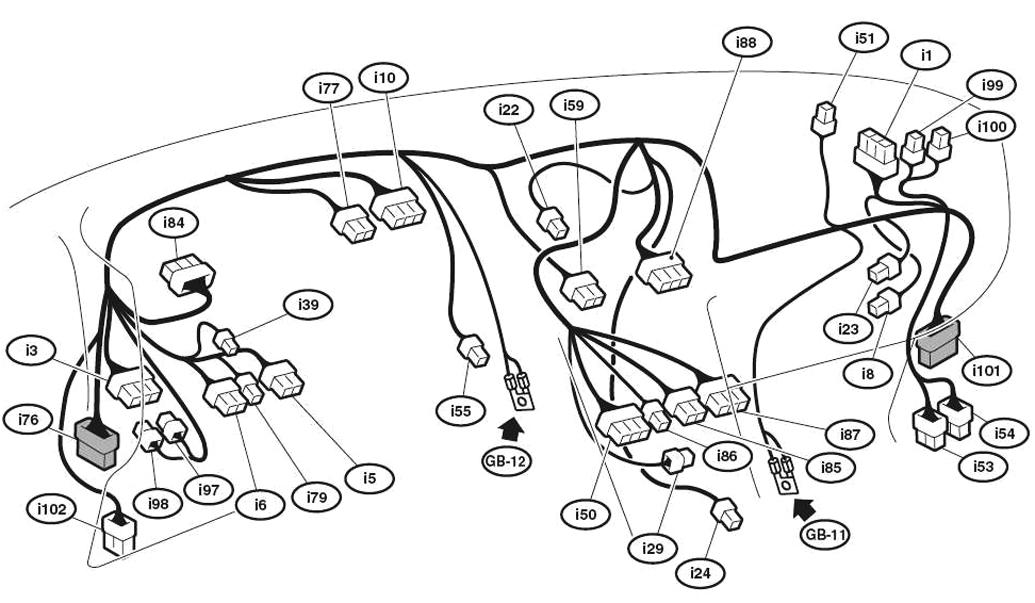

| Body Integrated Unit (I84) | Behind left side of dash. See Figure. |
| Engine Control Module (B134 - B137) | In passenger side front footwell below carpet and protective panel. See Figure. |

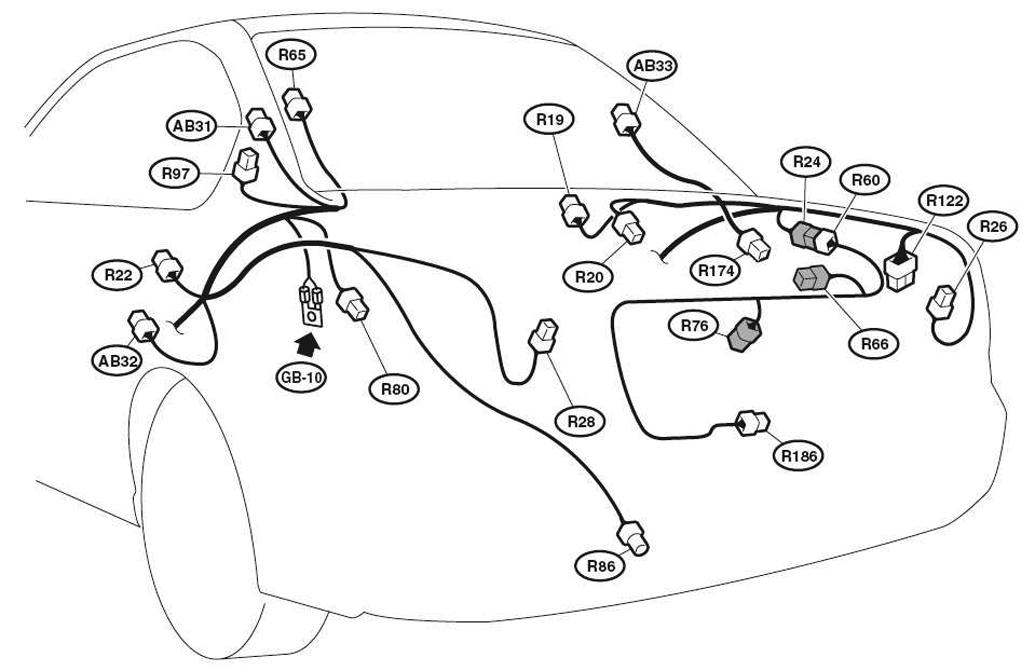

| Fuel Pump Control Module (Sedan) (R122) | Right rear of trunk. See Figure. |

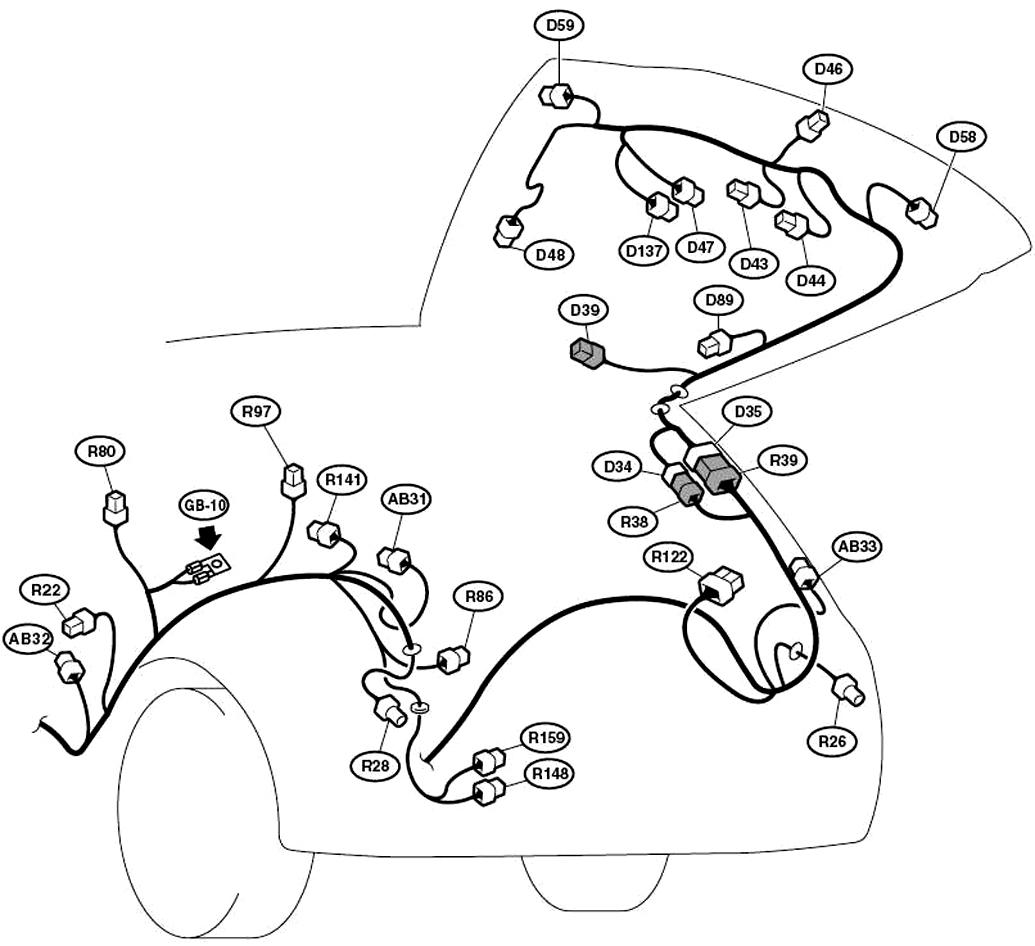

| Fuel Pump Control Module (Wagon) (R122) | Behind right rear quarterpanel. See Figure. |
| Keyless Entry Control Module (Sedan) (R80) | Left side of trunk. See Figure. |
| Keyless Entry Control Module (Wagon) (R80) | Behind left rear quarterpanel. See Figure. |
| Occupant Detection Module (AB53) | Under front passenger's seat. See Figure. |
| Rear Wiper Intermittent Module (R116) | Behind right rear quarterpanel. See Figure. |
| Remote Engine Start Control Module (B180) | Behind left side of dash. See Figure. |
| TPM Control Module (R211) | Near base of right "C" pillar. See Figure. |
| Transmission Control Module (B54, B55) | Behind center of dash. See Figure. |
| Turn Signal & Hazard Unit (B32) | Behind left side of dash. See Figure. |
| VDC Control Module (Non-Turbo) (B310) | Right side of engine compartment. See Figure. |
| VDC Control Module (Turbo) (B310) | Right side of engine compartment. See Figure. |
