Lift And Jack
When using a lift or shop jack to raise a vehicle or using rigid rack to support a vehicle, always follow instructions concerning jack-up points and weight limits to prevent the vehicle from falling, which could result in injury. Be especially careful that the vehicle is balanced before raising it. Be sure to set the wheel stoppers when jacking-up only the front or rear side of the vehicle.
NOTE:
- When using a lift, follow its operation manual before work.
- When the side sill cover contacts the lift arm, use a lift attachment.
- Do not work or leave unattended while the vehicle is supported with jack, support it with rigid racks.
- Be sure to use the rigid racks with rubber attached to cradle to support the vehicle.
- When using a plate lift, use a rubber attachment. (Model with side sill cover)
- Align the cushion rubber end of plate lift with the end of rubber attachment. (Portion b) Also, align the protrusion portion of the supporting locations with the end of attachment. (Portion a)
- Do not use the plate lift whose attachment does not reach the supporting locations. The figure of vehicle indicates the supporting locations, supporting procedures, etc. for 5 door model, and they are same for 4 door model.
Supporting locations

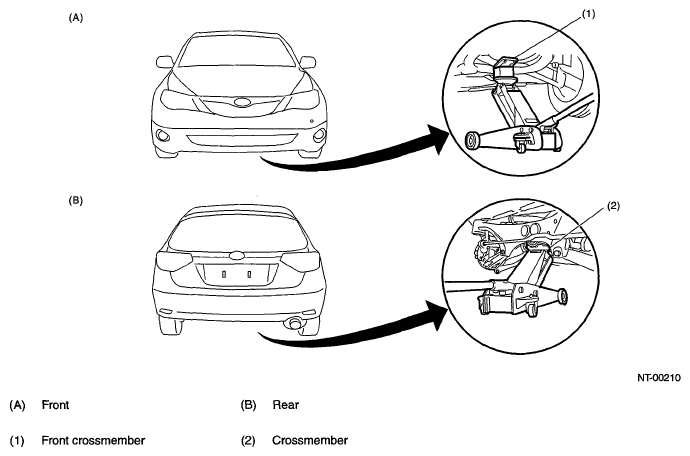

Pantograph jack
Lift

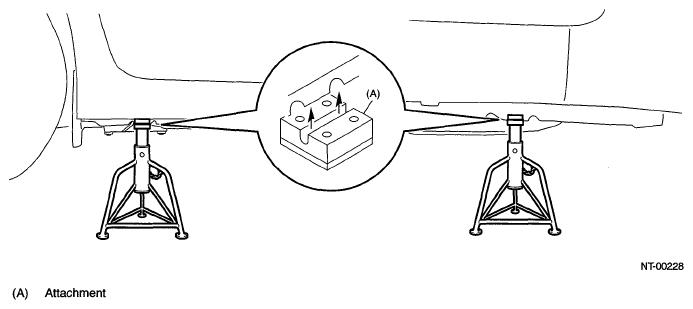

Rigid racks
Plate lift
- Use the attachment by aligning its position as follows.
- Model without side sill spoiler
For the models without side sill spoiler, align the center of attachment with the center of cutout portions.
Front
Rear
- Model with side sill spoiler
For the models with side sill spoiler, align the center of attachment with the center of vehicle cutout portion (the center of spoiler cutout portion).
Front
Rear
