AT Shift Lock Control System: Wiring Diagram

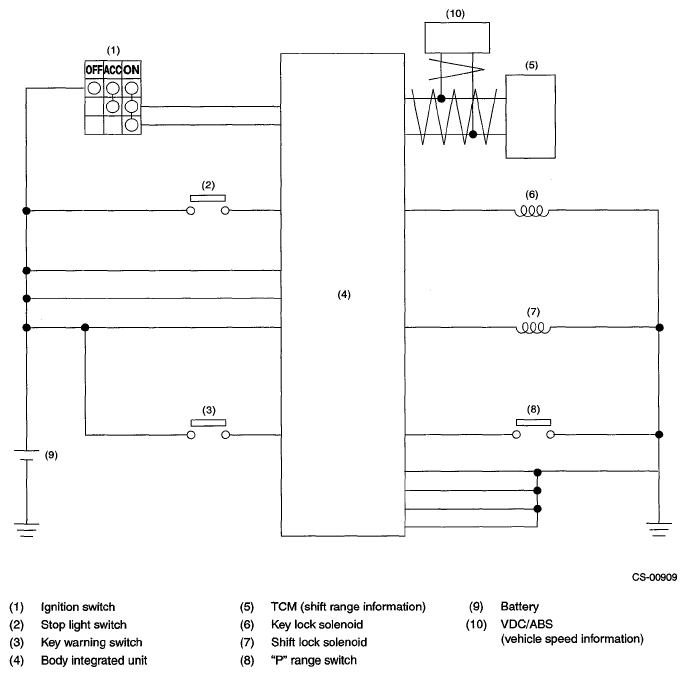

Fig 1: AT Shift Lock Control System Wiring Diagram

G05661178

Courtesy of SUBARU OF AMERICA, INC.
