Components With Torque Specifications

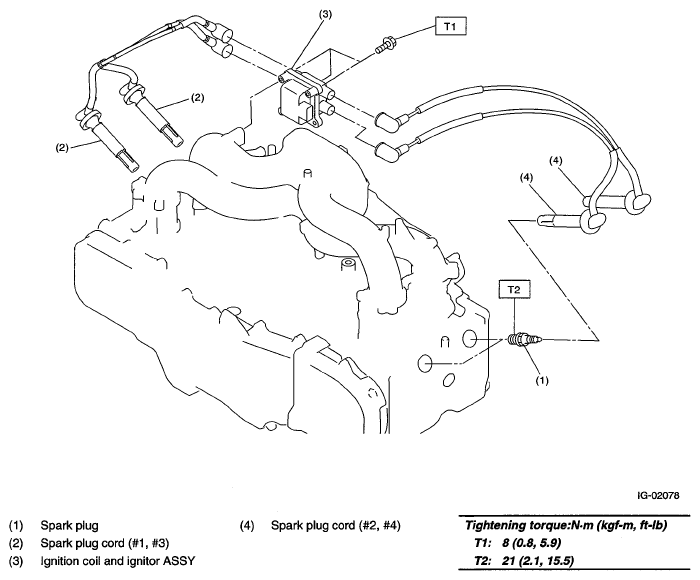

Fig 1: Ignitor Assembly And Spark Plug With Torque Specification

G05660048

Courtesy of SUBARU OF AMERICA, INC.
