AT Shift Lock Control System: Wiring Diagram

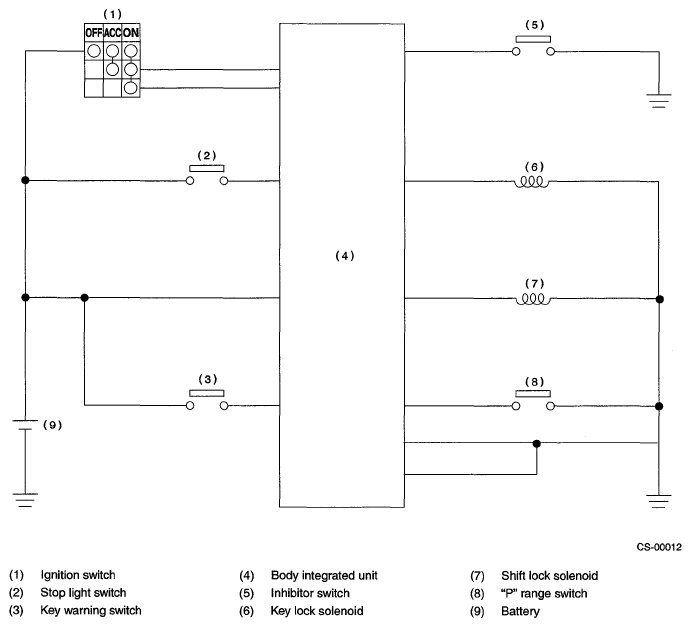

Fig 1: AT Shift Lock Control System - Wiring Diagram

G05657420
