Forester XT, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Abs - Vehicle Dynamics Control (VDC) System (Diagnostics)
>>
Control Module I/O Signal
>>
Measurement
>>
Waveform
Control Module I/O Signal: Measurement: Waveform

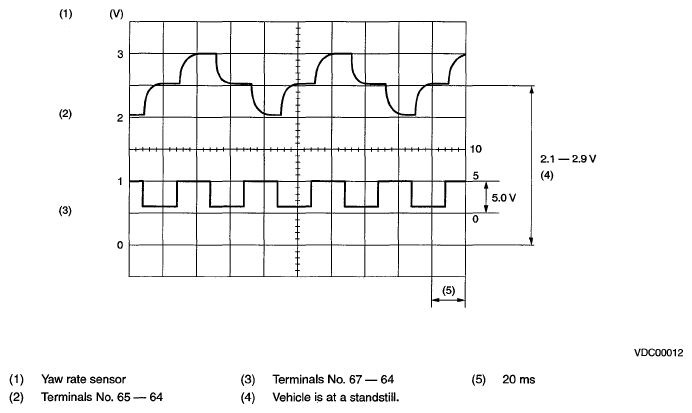

Fig 1: Input And Output Signal Voltages Waveform
Fig 2: CAN Communication Line Diagram
