Automatic Transmission - 4AT (Diagnostics): Electrical Component Location: Location: Sensor

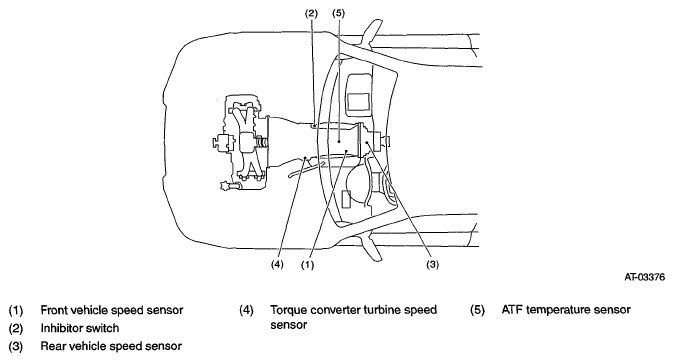

Fig 1: Identifying Sensor Components (1 Of 2)
G05657939Courtesy of SUBARU OF AMERICA, INC.

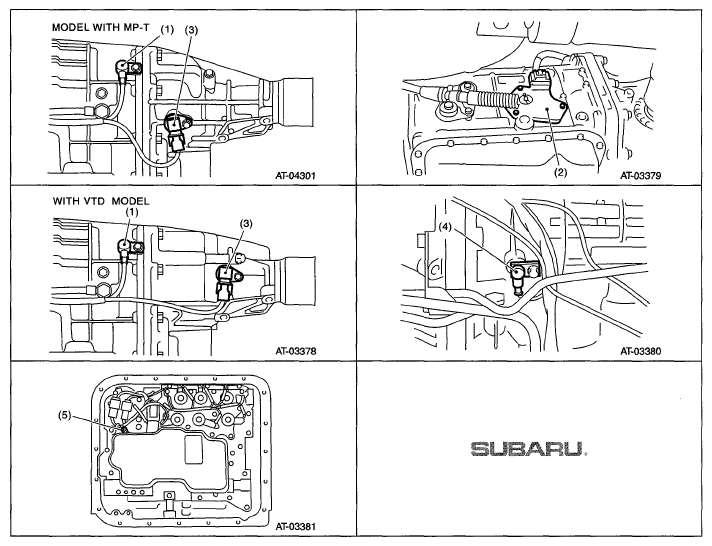

Fig 2: Identifying Sensor Components (2 Of 2)
G05657940Courtesy of SUBARU OF AMERICA, INC.
