Mp-T Model

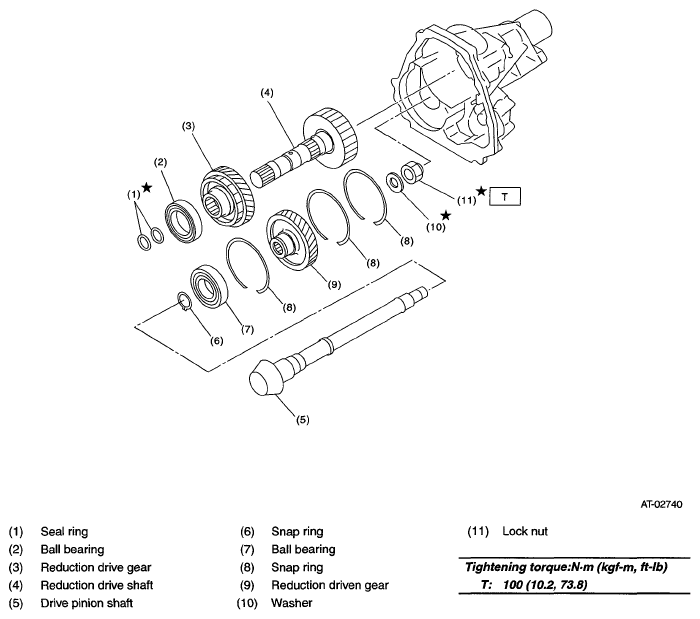

Fig 1: Identifying Reduction Gear Components With Torque Specifications (MP-T MODEL)
G05657499Courtesy of SUBARU OF AMERICA, INC.
