Rear Trailing Link: Removal

  1. Loosen the rear wheel nuts.
  2. Lift-up the vehicle, and then remove the rear wheels.
  3. Remove both the rear parking brake clamp and ABS wheel speed sensor harness.
  4. Remove the bolt which secures trailing link to trailing link bracket.

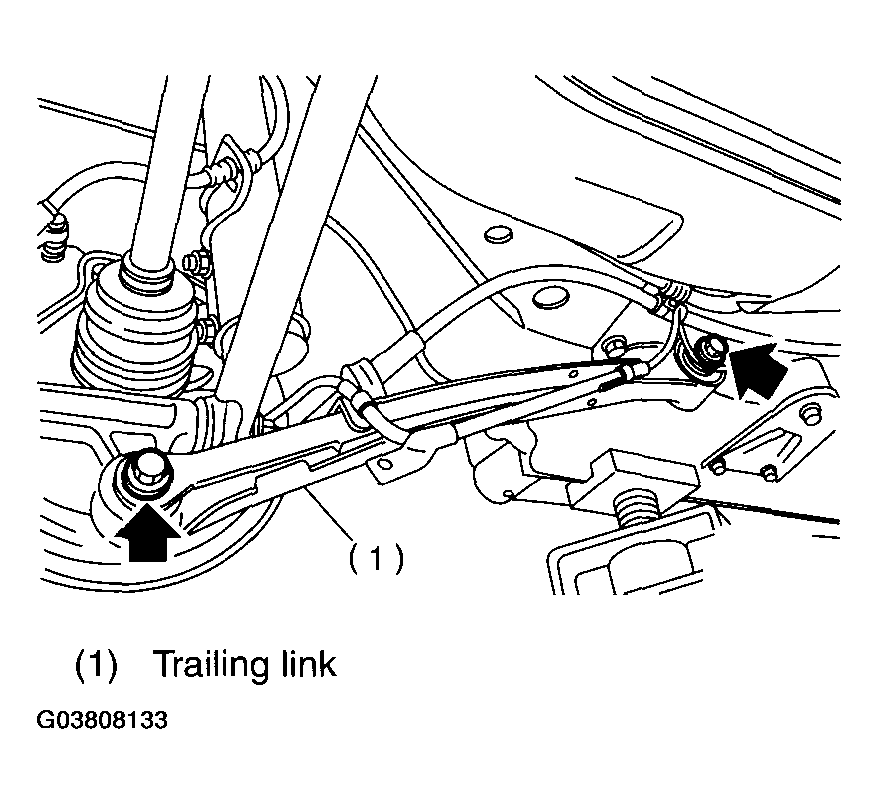

    Fig 1: Identifying Bolt Securing Trailing Link To Trailing Link Bracket
    G03808133Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the bolt which secures trailing link to rear housing.
