Front Bushing

Using the ST, press the bushing into trailing link. ST 927720000 INSTALLER & REMOVER SET

CAUTION: Turn the ST plunger upside down and press it until the plunger end surface contacts trailing link end surface.

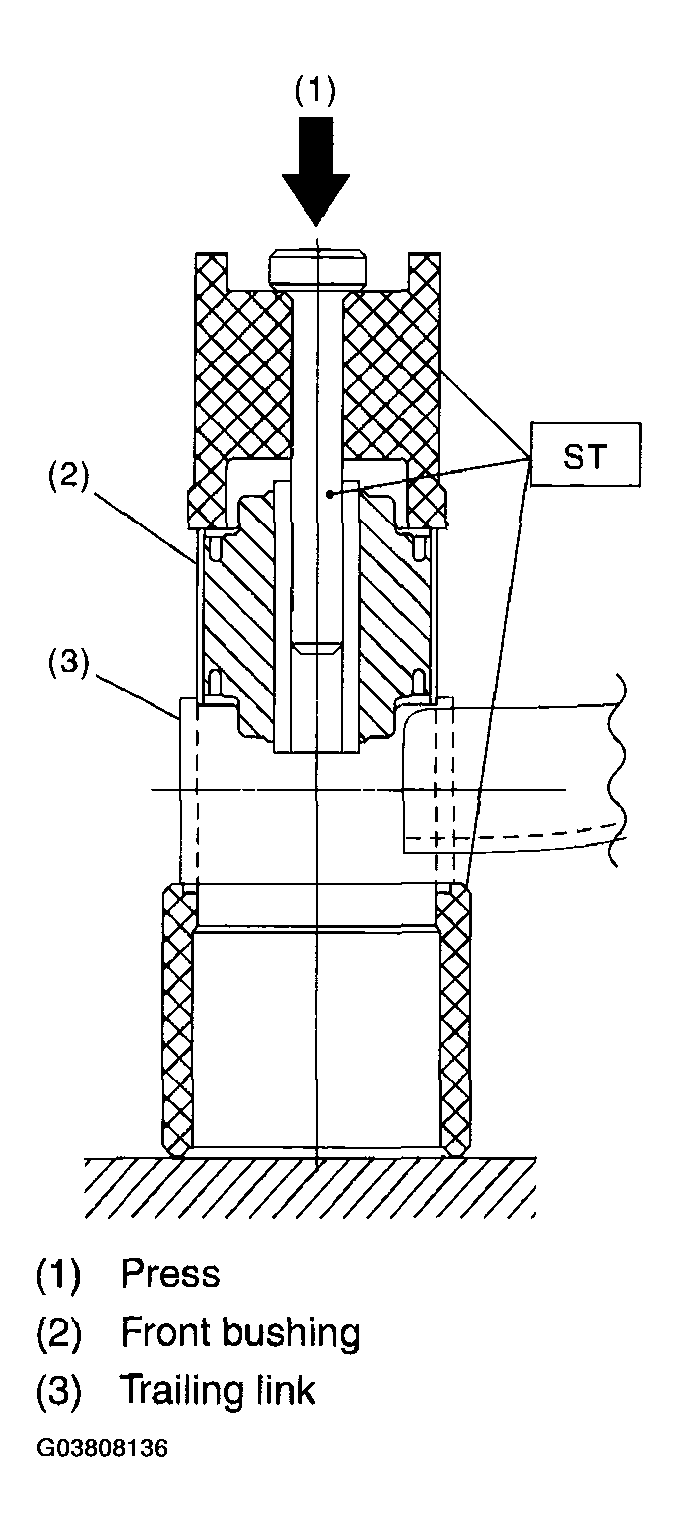

Fig 1: Identifying Front Bushing Using ST 927720000 Installer And Remover Set
G03808136Courtesy of SUBARU OF AMERICA, INC.
