Rear Stabilizer: Removal

  1. Lift-up the vehicle.
  2. Remove the stabilizer link.

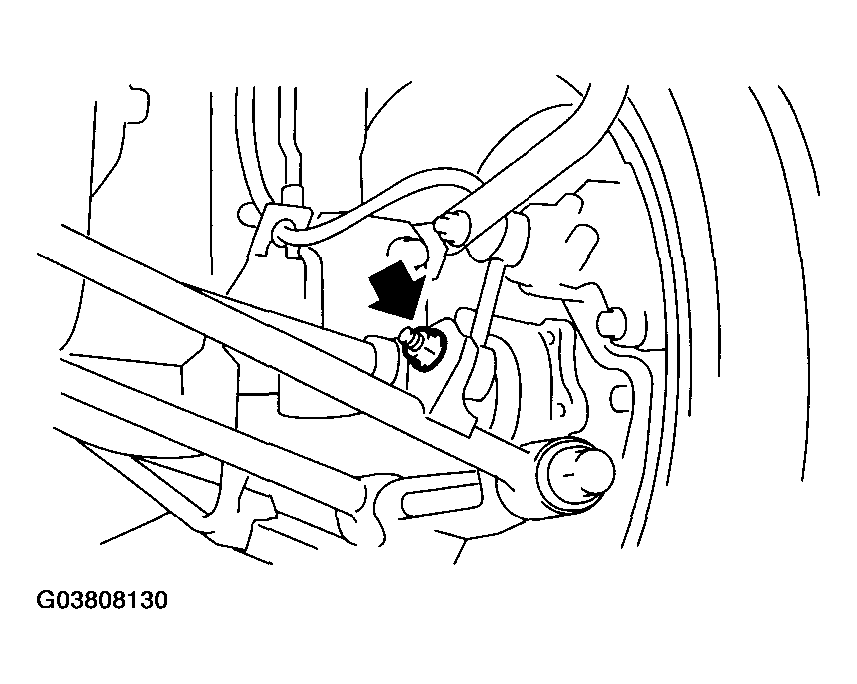

    Fig 1: Identifying Stabilizer Link
    G03808130Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bolt which secure stabilizer to stabilizer bracket.

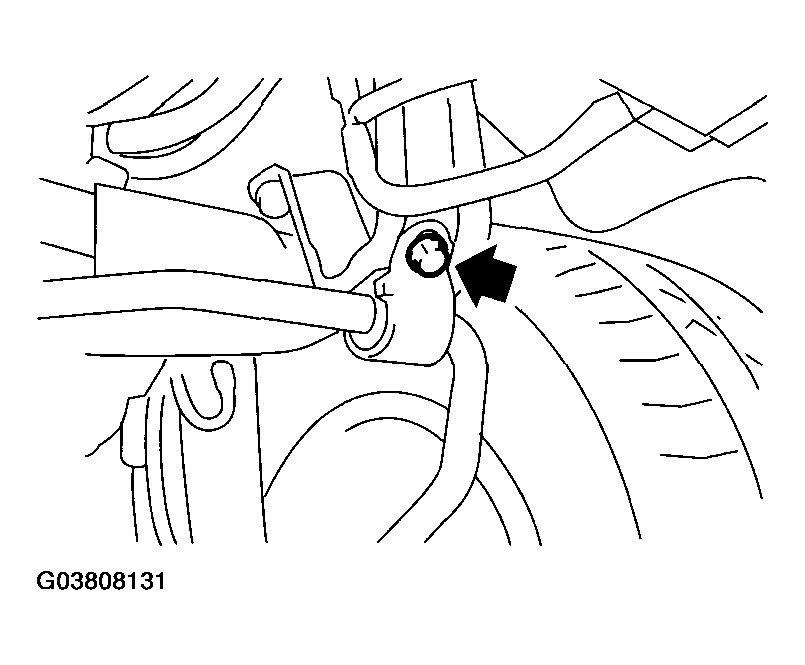

    Fig 2: Identifying Bolt Securing Stabilizer To Stabilizer Bracket
    G03808131Courtesy of SUBARU OF AMERICA, INC.
