Turbo model

WARNING: This page is about a different variant/trim than selected.

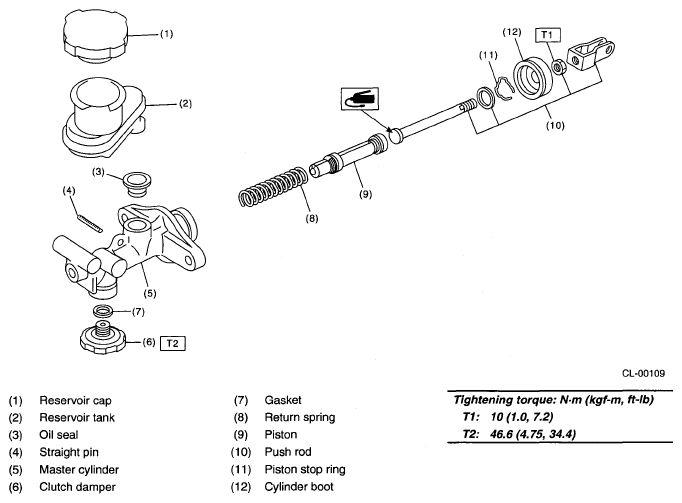

Fig 1: Master Cylinder Replacement Components (Turbo Model) With Torque Specifications
G05327178Courtesy of SUBARU OF AMERICA, INC.
