Under-Hood Fuse/Relay Box
NOTE:

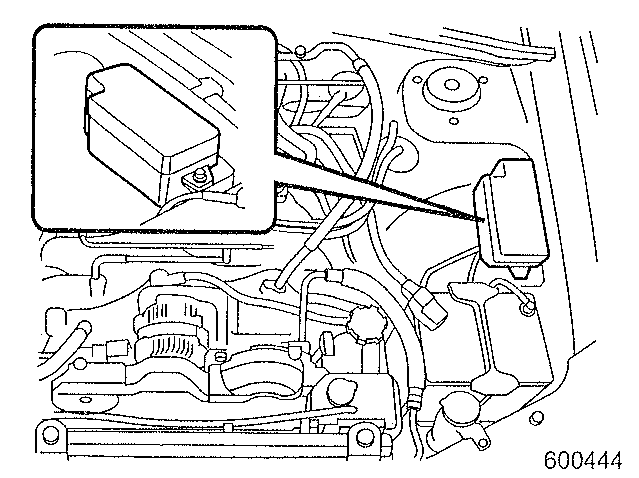

Under-hood fuse/relay box is located in the side of engine compartment, see illustration below.

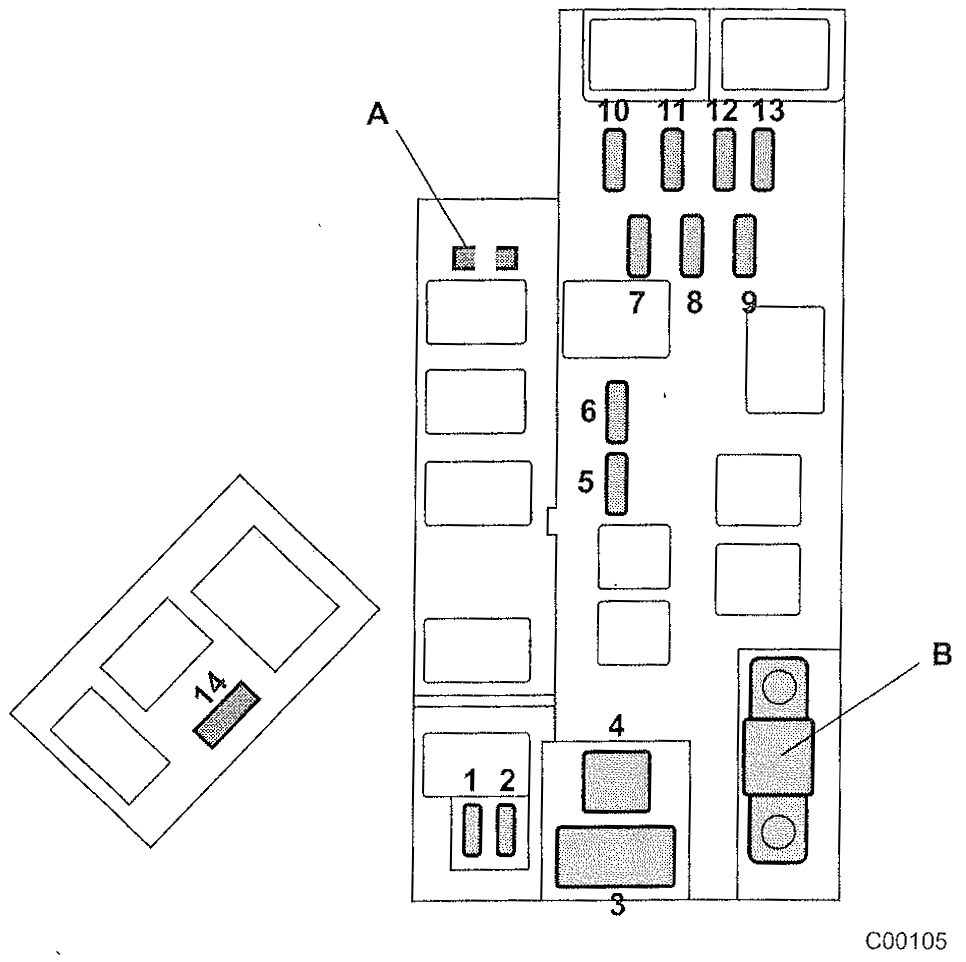

UNDER-HOOD FUSE/RELAY BOX LEGEND
| Fuse No. | Fuse Rating | Circuit |
|---|---|---|
| A | - | FWD Socket (AT models without Vehicle Dynamics Control system) |
| B | - | Main Fuse |
| 1 | 30A | Radiator Cooling Fan (Main) |
| 2 | 30A | Radiator Cooling Fan (Sub) |
| 3 | 50A * | VDC (Models with Vehicle Dynamics Control system only) |
| 30A | ABS Motor | |
| 4 | 30A | Engine Sensor (Non-turbo models only) |
| 5 | 20A | Rear Window Defogger |
| 6 | 15A | Hazard Warning Flasher, Horn |
| 7 | 15A | Turn Signal Lights |
| 8 | 10A | Automatic Transmission Control Unit |
| 9 | 10A | Alternator |
| 10 | 15A | Headlight (Right side) |
| 11 | 15A | Headlight (Left side) |
| 12 | 20A | Lighting Switch |
| 13 | 15A | Clock, Interior Light |
| 14 | 10A | Secondary Air Combination Valve (Turbo models only) |
| * : Only use 50 amp fuse if vehicle is equipped with "Vehicle Dynamics Control (VDC)" system. | ||
