Total Preload

Using a spring balance, check the total preload.

Total preload:

20.7- 54.4 N (2.1 - 5.5 kgf, 4.7 - 12.2 lb)

If the total preload is not within the specification, adjust the side bearing retainer shims.

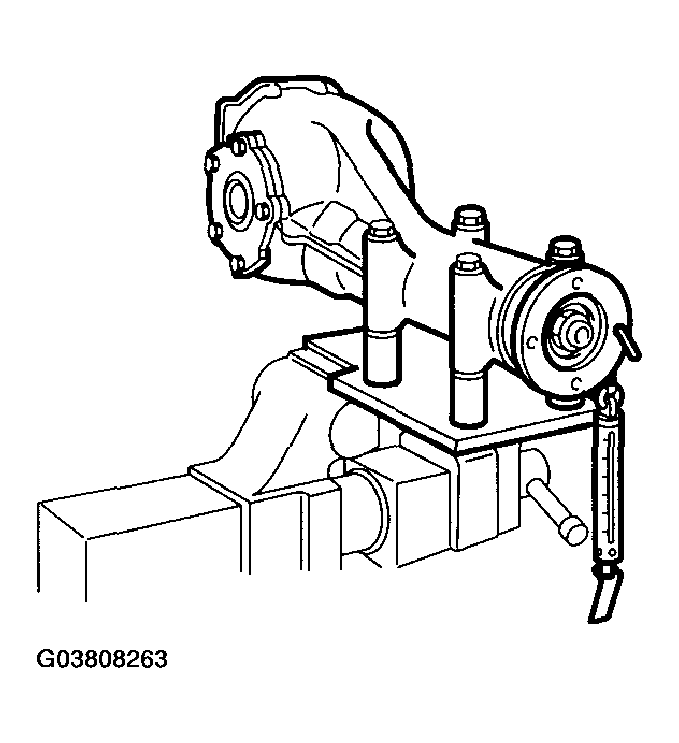

Fig 1: Identifying Total Preload

Courtesy of SUBARU OF AMERICA, INC.
