Rear Differential Without LSD
Rear Differential Without LSD

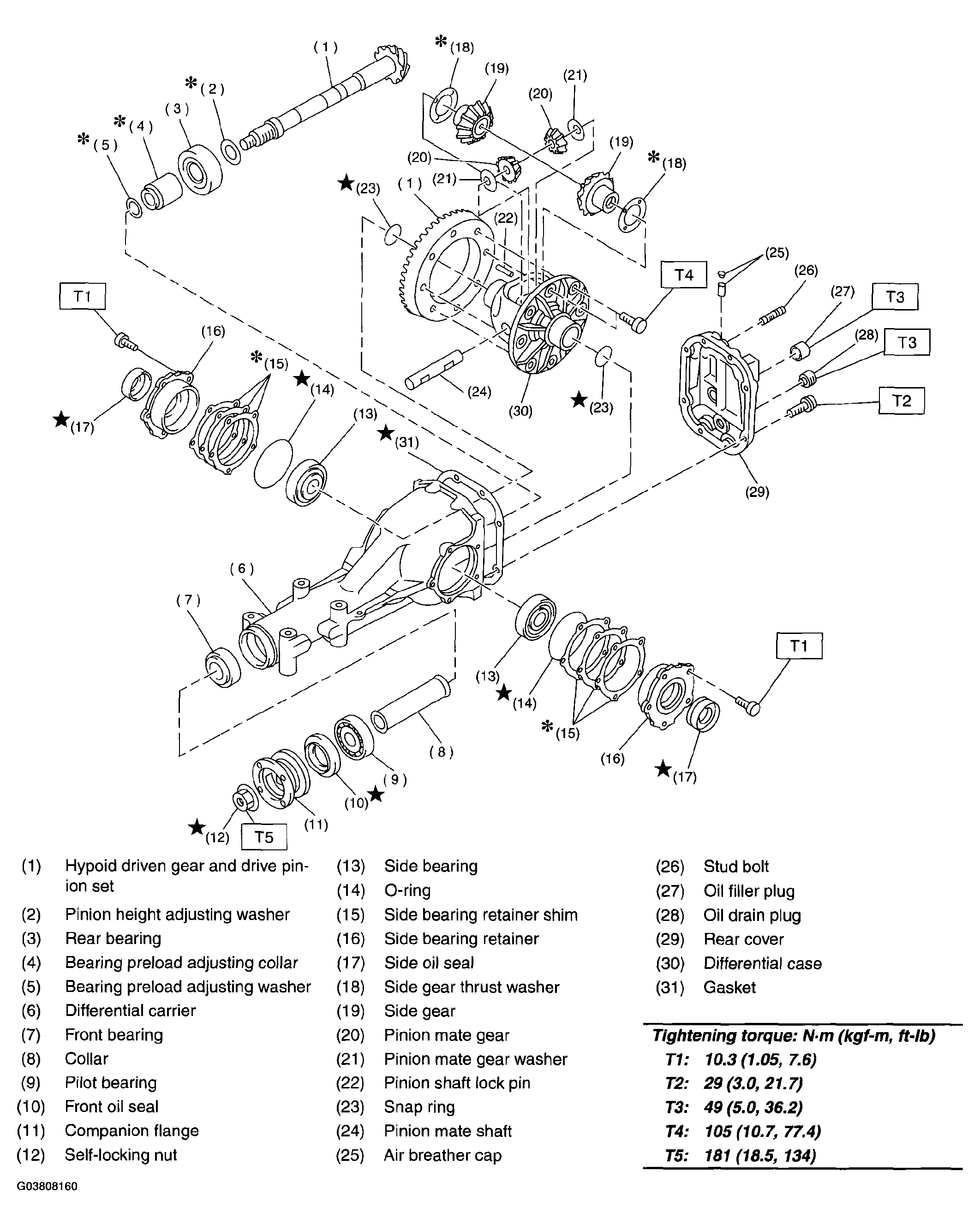

Fig 1: Exploded View Of Rear Differential Without LSD With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
