Rear Differential With LSD
Rear Differential With LSD

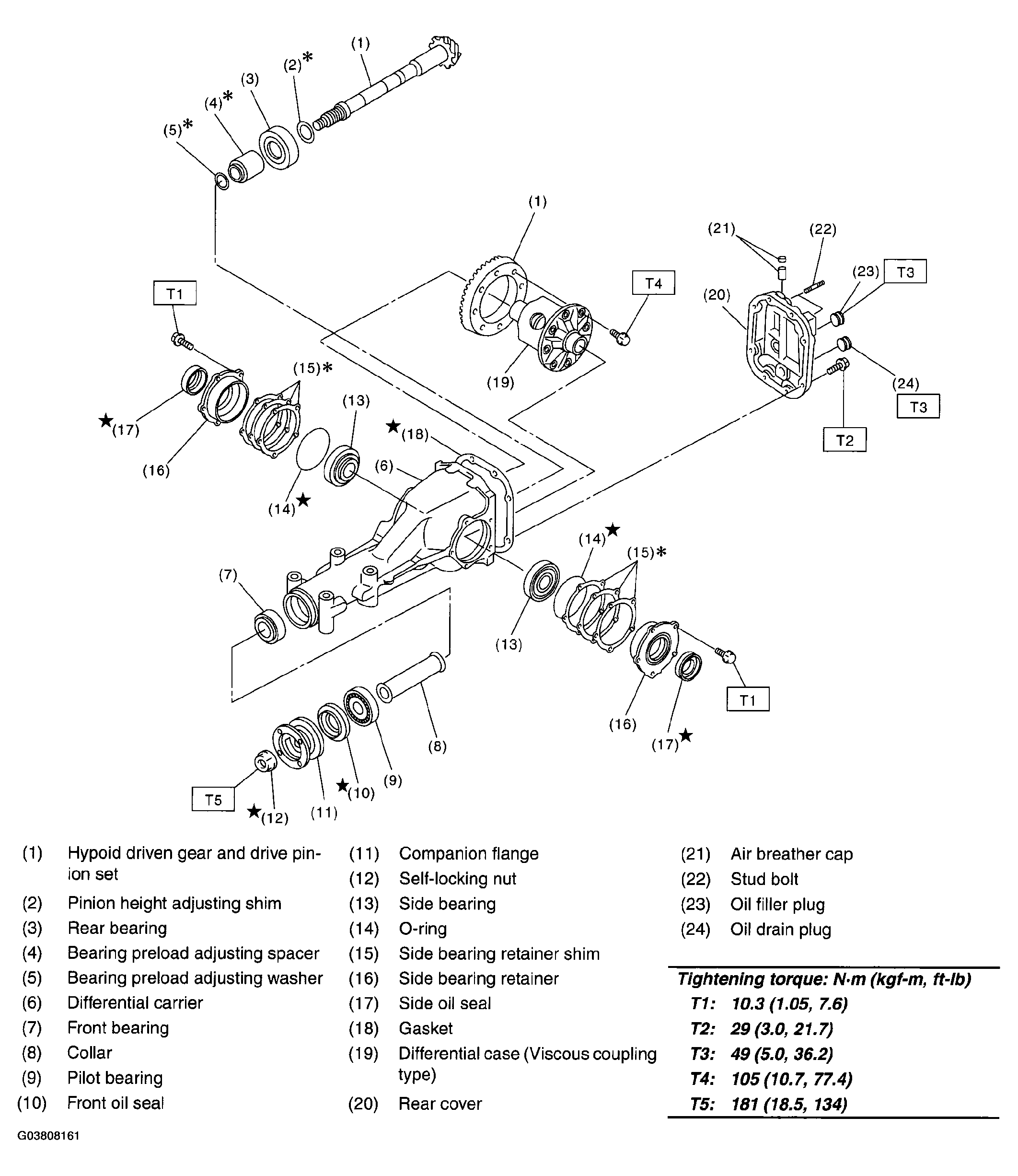

Fig 1: Exploded View Of Rear Differential With LSD With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
