Front Seat

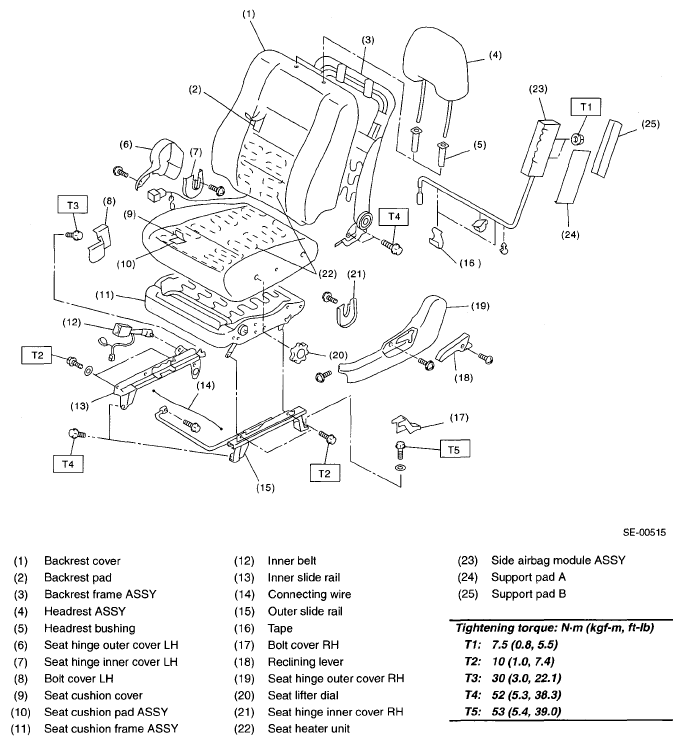

Fig 1: Front Seat Replacement Components (Driver's Seat) With Torque Specifications
G04995433Courtesy of SUBARU OF AMERICA, INC.

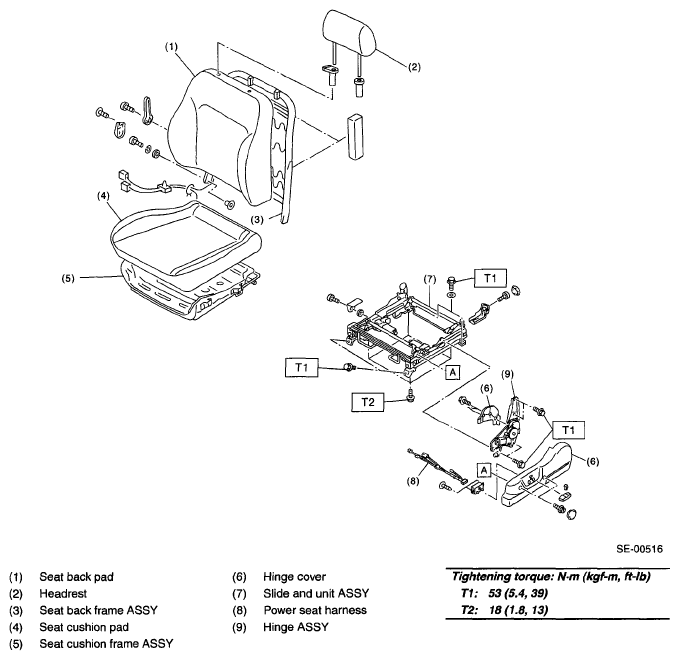

Fig 2: Front Seat Replacement Components (Power Seat) With Torque Specifications
G04995434Courtesy of SUBARU OF AMERICA, INC.

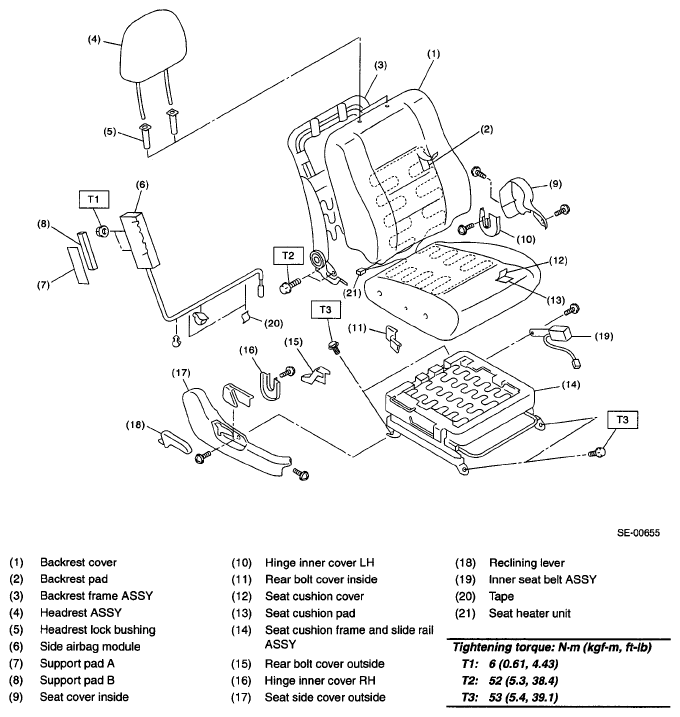

Fig 3: Front Seat Replacement Components (Passenger's Seat) With Torque Specifications
G04995435Courtesy of SUBARU OF AMERICA, INC.
