Wheel Arch Height

  1. Set the vehicle on a level surface.
  2. Set the vehicle to "curb weight" conditions. (Empty luggage compartment, install spare tire, jack, service tools, and top up fuel tank.)
  3. Set the steering wheel in a straight line, then remove the vehicle straight ahead more than 5 m (16 ft) to settle the suspension.
  4. Suspend the thread from wheel arch (point "A" in figure below) to determine a point directly above center of wheel.
  5. Measure the distance between measuring point "A" and center of wheel.

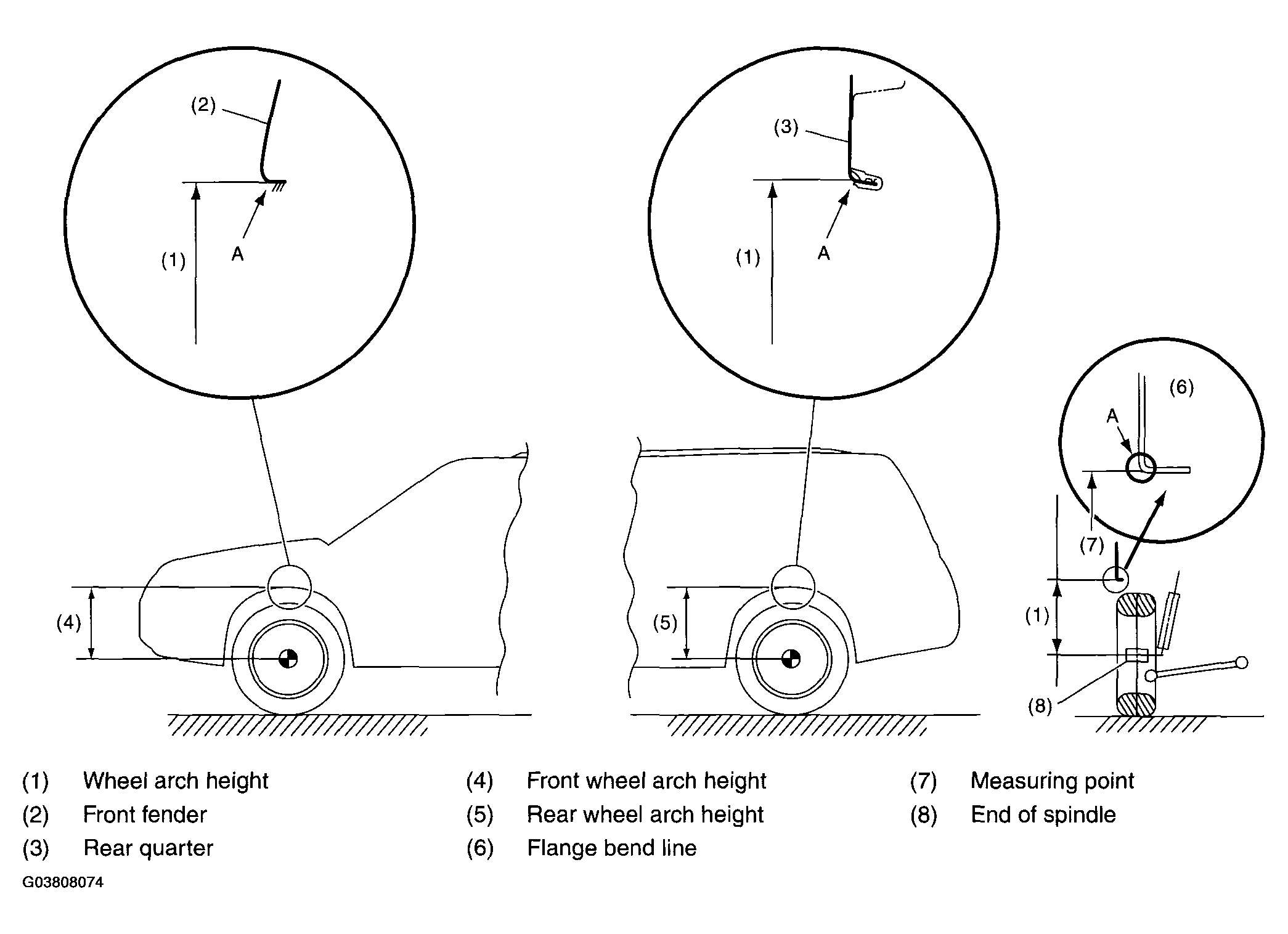

    Fig 1: Identifying Wheel Arch Height
    G03808074Courtesy of SUBARU OF AMERICA, INC.
    WHEEL ARCH HEIGHT SPECIFICATIONS

    Model Specified wheel arch height
    Front Rear
    Non-turbo 437 +12/-24 mm (17.20 +0.47/-0.94 in) 440 +12/-24 mm (17.32 +0.47/-0.94 in)
    Turbo 435 +12/-24 mm (17.13 +0.47/-0.94 in)
