VDC Hydraulic Control Module (VDCH/M)

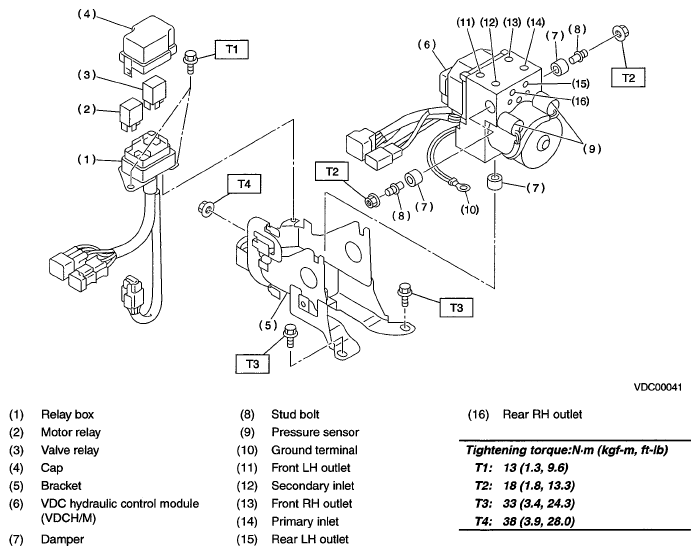

Fig 1: Identifying VDC Hydraulic Control Module Components With Torque Specification
G05658030
CAUTION: Parts other than the valve relay and motor relay cannot be disassembled.
