Section 24 (Intake System (Induction) (H6DO))
>>
General Description
>>
Components With Torque Specifications
Components With Torque Specifications
WARNING:
This page is about a different variant/trim than selected.

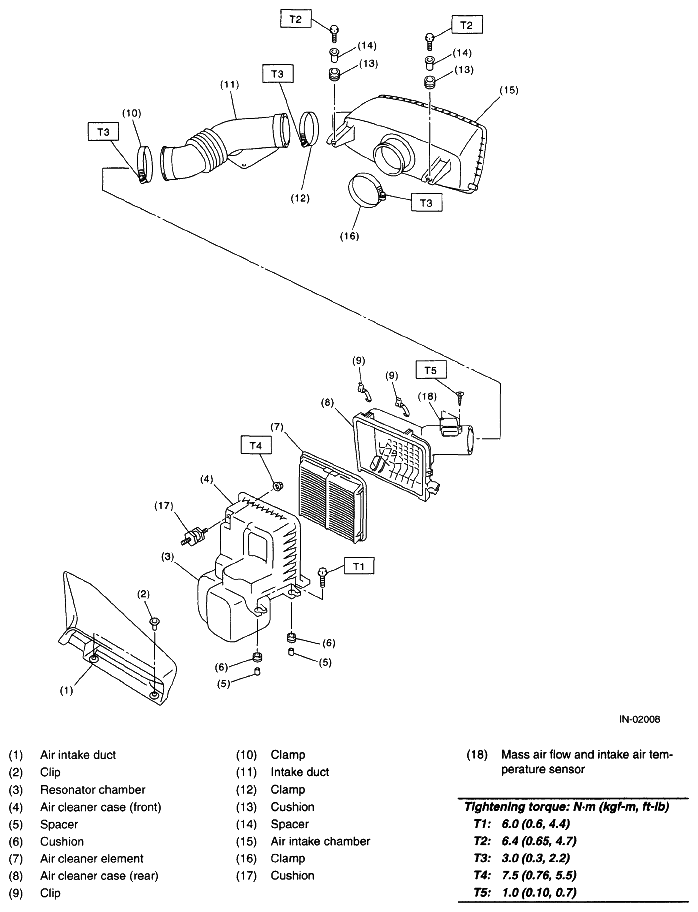

Fig 1: Exploded View Of Air Intake System Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
