L Model

  1. Replace the belts if cracks, fraying or wear are found.
  2. Check that the V-belt automatic belt tensioner indicator (A) is within the range (D).

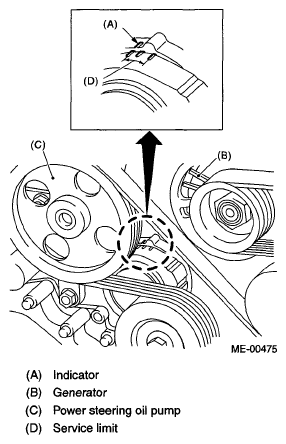

    Fig 1: Checking V-Belt Automatic Belt Tensioner
    G05337419Courtesy of SUBARU OF AMERICA, INC.
