Components With Torque Specifications

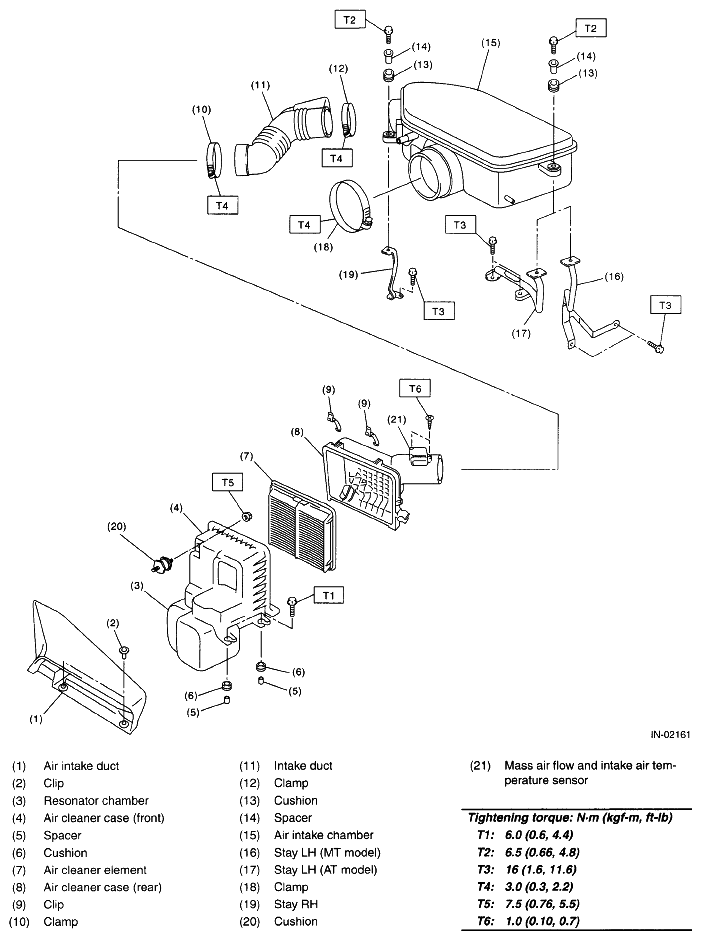

Fig 1: Air Cleaner Replacement Components With Torque Specifications

G05016959

Courtesy of SUBARU OF AMERICA, INC.
