Trunk Lid Opener

  1. Remove the rear seat. < Ref. to REMOVAL , Rear Seat. >
  2. Remove the center pillar lower trim, side sill cover, rear pillar lower trim and floor mat on the driver's side. Remove the clip holding the cable.
  3. Remove the opener lever (1) and rear cover (2).
  4. Remove the pin (3) and remove front cover (4).
  5. Remove the bolt and nut, and remove the pull handle assembly (5).

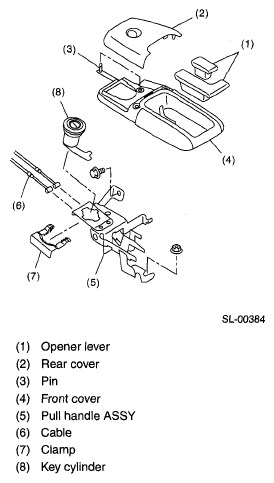

    Fig 1: Identifying Pull Handle Assembly Components
    G05022822Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the cable from the pull handle assembly (5).
  7. Remove clamp (7) to remove the key cylinder (8).
    CAUTION: Remove the key cylinder in the UNLOCK position.
  8. Remove the trunk lid lock assembly from the trunk lid.
  9. Remove the cable from the trunk lid lock assembly.
    Fig 2: Identifying Trunk Lid Lock Assembly And Cable
    G05022823Courtesy of SUBARU OF AMERICA, INC.
